Author: Subject: Old School Peter Lynn Race Buggy?
macboy




Posts: 3144
Registered: 10-15-2007
Location: Edmonton, Alberta
Member Is Offline

Mood: They're ALL good ideas. Right up until they become BAD ideas.

[*] posted on 9-26-2021 at 08:48 PM
Old School Peter Lynn Race Buggy?


Back in the day RevPaul had a PL Race Buggy with a suspension setup on the back wheels. Does anyone here have one still? I'd love to get some pics of the suspension setup. Thinking about playing with a welder and some tube and building up a landsailer but would love to try to smooth out the fields I'd be playing on with some smart suspension.



KC07 - Certified Chronic

Rev Shockwave | Brooza II 3 | BusterII's 3/4/5 | Hornet 1.5
Reactor II 5.5/6.9 | AccessXC 10 | Frenzy 12 | PsychoIII 13 | Speed2 12 | Speed3 15 | SA2.5 19
Bomba 15 | Phantom 15/18 | Venom 13 | Slingshot T3 9/11/14m

Skis, Ski Skates, Nobile RM Pro, MBS Pro 90, Kailolo 5' 11" Custom Phish, Kailolo 5'9" Custom Phish, Plyboard, Proof 151, FlydoorM, F-One 198, Coyotes, Comp XR+, and the BEST WIFE IN THE WORLD!

I have not failed. I've just found 10,000 ways that won't work.
~ Thomas Edison
View user's profile View All Posts By User
rtz


Avatar


Posts: 1096
Registered: 10-12-2010
Location: Edmond, OK
Member Is Offline


[*] posted on 9-27-2021 at 02:29 PM


Local guy here had one back then. Said when the kite was powered up; it would cause the buggy to be torqued over. He ended up making links to replace the springs to lock out the suspension.

Front suspension using the rubber bushings like Popeye the welded made makes the most difference. I did the same to the back axle and the improvement wasn't nearly as noticeable. Another way to look into is the flex type back axle as used on the current model Sysmic buggy and the Seagull landsailers.

If anyone here knows of a source of that fiberglass plank material I'd like to know. I've looked for it and haven't found any.




Sting 1.7 - Flow 2, 3, 4, 5 - Reactor 2.2, 2.8, 3.5, 4.4, 5.5 - Yakuza 2.2, 2.7 - JOJO 9
View user's profile View All Posts By User
Jack.Oh


Avatar


Posts: 166
Registered: 4-12-2019
Location: Aurora, Oh
Member Is Offline


[*] posted on 9-27-2021 at 06:49 PM


I just happen to have one in my possession for another week.

Here you go...

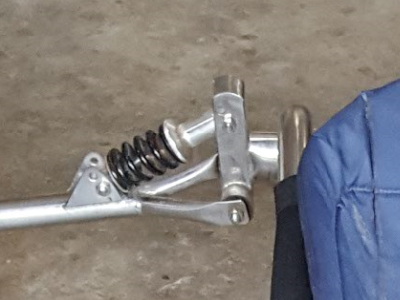

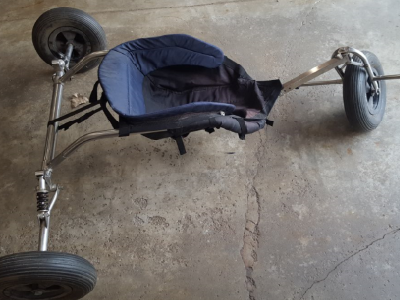

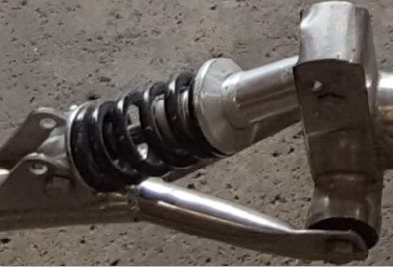

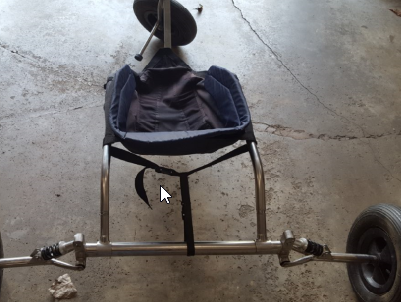

PL Sus 1.png - 248kB PL Sus 2.png - 242kB PL Sus 4.png - 204kB PL Sus 5.png - 183kB

If you would like more let me know. I am out of town until Friday night.

But, once I get back I will be happy to send you more. U2U me your email.

Positing here is a bit limiting.




US417
Custom buggy "Zephyr II"
FS Peak 6m (big thank you to Soliver)
PL Phantom 18m
Pansh A15 9m, 12m, 15m
View user's profile View All Posts By User
macboy




Posts: 3144
Registered: 10-15-2007
Location: Edmonton, Alberta
Member Is Offline

Mood: They're ALL good ideas. Right up until they become BAD ideas.

[*] posted on 9-27-2021 at 07:55 PM


Thanks for the insights RTZ and hanks for the photos. Shooting you my email addy now Jack.



KC07 - Certified Chronic

Rev Shockwave | Brooza II 3 | BusterII's 3/4/5 | Hornet 1.5
Reactor II 5.5/6.9 | AccessXC 10 | Frenzy 12 | PsychoIII 13 | Speed2 12 | Speed3 15 | SA2.5 19
Bomba 15 | Phantom 15/18 | Venom 13 | Slingshot T3 9/11/14m

Skis, Ski Skates, Nobile RM Pro, MBS Pro 90, Kailolo 5' 11" Custom Phish, Kailolo 5'9" Custom Phish, Plyboard, Proof 151, FlydoorM, F-One 198, Coyotes, Comp XR+, and the BEST WIFE IN THE WORLD!

I have not failed. I've just found 10,000 ways that won't work.
~ Thomas Edison
View user's profile View All Posts By User
gilligan




Posts: 215
Registered: 6-22-2003
Location: Oakland, CA
Member Is Offline

Mood: Cynical optimism

[*] posted on 10-18-2021 at 10:44 AM


I had one, and I can assure you the suspension was worthless. I locked it down.
View user's profile View All Posts By User
bugymangp




Posts: 778
Registered: 11-10-2003
Member Is Offline


[*] posted on 10-18-2021 at 06:09 PM


I had it too yes worth less
Your better off running the tires on the soft side
View user's profile View All Posts By User
Rncembal




Posts: 19
Registered: 11-7-2003
Member Is Offline

Mood: No Mood.

[*] posted on 10-22-2021 at 02:04 PM


it did have the advantage of a wide rear axle that folded up for air travel.

View user's profile View All Posts By User
jeepersjoey


Avatar


Posts: 450
Registered: 1-1-2012
Location: Denvah Dahlin'
Member Is Offline

Mood: Vapor Trails...

[*] posted on 10-23-2021 at 12:47 PM


MacBoy,

I own one and it is hanging in my garage. I can take pics and give any measurements that you might need.

Email

Jeepersjoey at yahoo and it will be easier to talk.

Whatever I can do to help!
Paul




Peter Lynn - Resurrected Vapors (thanks to Tenacious Tape): 3.2, 3.8, 4.5, 5.4m. Size 2.3m (dead) - all internal bellows shredded
Pansh - Cerberus - 3, 4, 5, 6, 7.5, 9m. (red)
Peter Lynn - Viper - 2.6m
Flexifoil - Rage - Rasta 1.8, 2.5 (dead), 3.5 (dead), 4.7 (v2). New backup of 2.5m and 3.5m.
Ozone - Method 6.5m (w/ Ozone Turbo Bar)
Libre - Bora - Yellow 3.0 & 4.5 (both on their last breath of life)
Peter Lynn - C-Quad - 6.3
HQ - NPW9: 3.4 & 5.3. NPW5: 1.0

Buggies (Kite and Land)
#1 Buggy: Libre Full-Race
#2 Buggy: Peter Lynn Suspension buggy
#3 Sailer: Homemade Land Sailer
#4 Buggy: Windspeed Pro Ivanpah Buggy named Bruce (because he weighs 130 lbs!!)

Paul's Photo Album

Paul's Videos
View user's profile View All Posts By User
