Author: Subject: Chicken loop release
utahtami


Avatar


Posts: 198
Registered: 1-20-2013
Location: Basalt, CO
Member Is Offline

Mood: Here comes the wind, I'm sure of it

sad.gif posted on 11-18-2018 at 06:11 PM
Chicken loop release


The 1 inch metal finger on the Peak 1 chicken loop release hangs up. It probably has been that way always. A friend flies this kite and I think I told her it was user error. But now (4 years later) that I've flown that kite I see what she's talking about.
Does anyone have a worn out kite but still have the release unit to part out. Or does the swivel and bar come out, with those available?
I will try to post a picture.




Gin: Shaman
Ozone: IMP Quattro, Access
HQ: Beamer
PL: Viper, Core, Vapor
Flexi: Bullet, Rage
PKD: Buster Soulfly
Flysurfer: Peak, Peak2
NPW5

VTT Stinger Race
MK Splitter AQR
View user's profile View All Posts By User
jeffnyc




Posts: 457
Registered: 9-5-2017
Location: NYC
Member Is Offline

Mood: In the

[*] posted on 11-18-2018 at 06:53 PM


If it's the 1.0 bar, you can get a replacement CL from their European online shop for 29 euro, but they do take a while to ship. I wish the 3.0 CL was a bit cheaper, but if you want to splash a little cash around it is very nice, and fixes the complaints with the earlier CL.
Just out of curiosity, what is hanging up? Is the spring too stiff or is the top (where the depower rope runs through) bent downwards? I could totally see how that would stop the lever from sliding out and releasing that finger.




Foil: Speed5 18+12 | Speed3 15 | Sonic2 9m
Arc: Phantom I 12m+18m
LEI: NRG 12m, WOW 9m
FB: Flux 5m | Bullet 4.5 | Blurr 3.5 + 2.5 | Rage 2.5 | Beamer 1.8
Ride: Flexi Haize | MBS core 90 | SS Vision 140 | Mako 140 + King 165 | King Gee | SS Hover Glide | WB 5'6"
NAPKA NCC-US1701
View user's profile View All Posts By User
utahtami


Avatar


Posts: 198
Registered: 1-20-2013
Location: Basalt, CO
Member Is Offline

Mood: Here comes the wind, I'm sure of it

[*] posted on 11-18-2018 at 07:15 PM


The 1 inch metal finger has a loop at the end that encircles a lateral 1 inch metal rod that is anchored in the plastic housing. It hangs up on that rod. Clear as mud?



Gin: Shaman
Ozone: IMP Quattro, Access
HQ: Beamer
PL: Viper, Core, Vapor
Flexi: Bullet, Rage
PKD: Buster Soulfly
Flysurfer: Peak, Peak2
NPW5

VTT Stinger Race
MK Splitter AQR
View user's profile View All Posts By User
utahtami


Avatar


Posts: 198
Registered: 1-20-2013
Location: Basalt, CO
Member Is Offline

Mood: Here comes the wind, I'm sure of it

[*] posted on 11-18-2018 at 07:27 PM


I have a picture but am unable to post it.



Gin: Shaman
Ozone: IMP Quattro, Access
HQ: Beamer
PL: Viper, Core, Vapor
Flexi: Bullet, Rage
PKD: Buster Soulfly
Flysurfer: Peak, Peak2
NPW5

VTT Stinger Race
MK Splitter AQR
View user's profile View All Posts By User
jeffnyc




Posts: 457
Registered: 9-5-2017
Location: NYC
Member Is Offline

Mood: In the

[*] posted on 11-18-2018 at 07:57 PM


Yeah - exactly what I was muddily describing above. There's a big spring inside the plastic housing that takes a lot of force to push. If that's blocked in some way that would be a problem.
Oh - I also remember seeing a video somewhere where someone was bending that finger at an angle with a vise - I think that gets stuck if it doesn't slide out correctly.
(found it)


Here's the spares dept: http://shop.flysurfer.com/spareparts-1/bars.html

not sure if this is your trouble, but if you're posting images from your computer, Upload size limit is 250kB. Image limit is 1000x1000.




Foil: Speed5 18+12 | Speed3 15 | Sonic2 9m
Arc: Phantom I 12m+18m
LEI: NRG 12m, WOW 9m
FB: Flux 5m | Bullet 4.5 | Blurr 3.5 + 2.5 | Rage 2.5 | Beamer 1.8
Ride: Flexi Haize | MBS core 90 | SS Vision 140 | Mako 140 + King 165 | King Gee | SS Hover Glide | WB 5'6"
NAPKA NCC-US1701
View user's profile View All Posts By User
jeffnyc




Posts: 457
Registered: 9-5-2017
Location: NYC
Member Is Offline

Mood: In the

[*] posted on 11-18-2018 at 07:57 PM


double post



Foil: Speed5 18+12 | Speed3 15 | Sonic2 9m
Arc: Phantom I 12m+18m
LEI: NRG 12m, WOW 9m
FB: Flux 5m | Bullet 4.5 | Blurr 3.5 + 2.5 | Rage 2.5 | Beamer 1.8
Ride: Flexi Haize | MBS core 90 | SS Vision 140 | Mako 140 + King 165 | King Gee | SS Hover Glide | WB 5'6"
NAPKA NCC-US1701
View user's profile View All Posts By User
utahtami


Avatar


Posts: 198
Registered: 1-20-2013
Location: Basalt, CO
Member Is Offline

Mood: Here comes the wind, I'm sure of it

[*] posted on 11-19-2018 at 10:35 AM


The part that is hanging up is a different part than in the video. Thanks for the link but I don't think I'm willing to spend that much on the project. (After all life is full of risk and not releasing smoothly is just one more.)
It would be nice to just replace the loop and rod pieces - which is where the hang up is.




Gin: Shaman
Ozone: IMP Quattro, Access
HQ: Beamer
PL: Viper, Core, Vapor
Flexi: Bullet, Rage
PKD: Buster Soulfly
Flysurfer: Peak, Peak2
NPW5

VTT Stinger Race
MK Splitter AQR
View user's profile View All Posts By User
Kamikuza


Avatar


Posts: 6410
Registered: 1-9-2005
Location: Shiga, JAPAN
Member Is Offline


[*] posted on 11-19-2018 at 06:57 PM


It's just a standard FS QL? Are you sure you're setting it up correctly? How is it "hanging"?



Yeah... I got a kite. Or two...
View user's profile Visit user's homepage View All Posts By User
utahtami


Avatar


Posts: 198
Registered: 1-20-2013
Location: Basalt, CO
Member Is Offline

Mood: Here comes the wind, I'm sure of it

[*] posted on 11-19-2018 at 07:35 PM

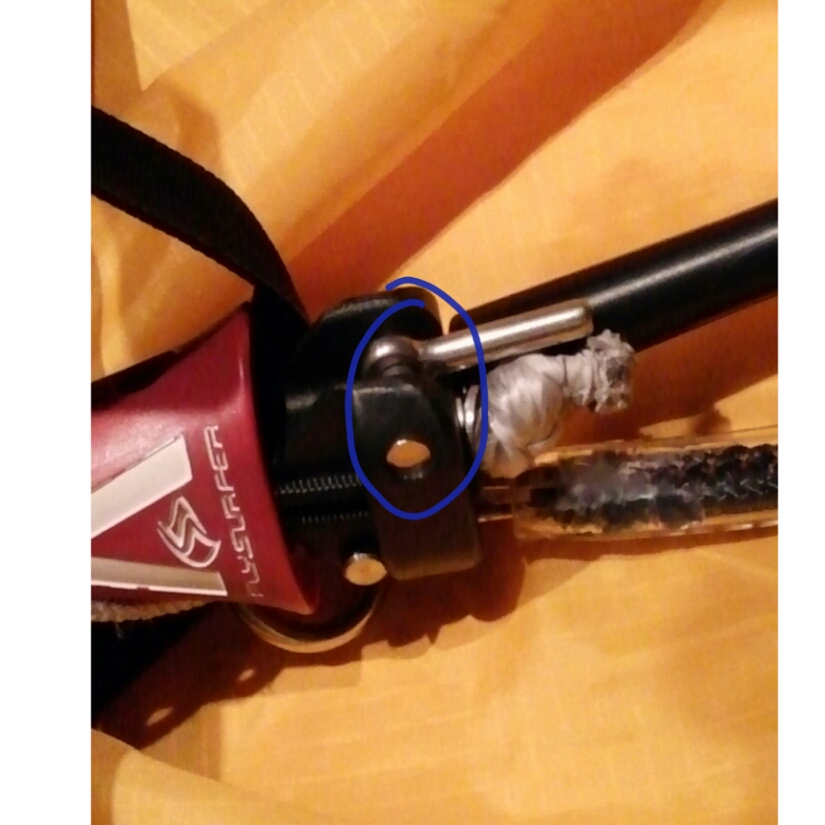

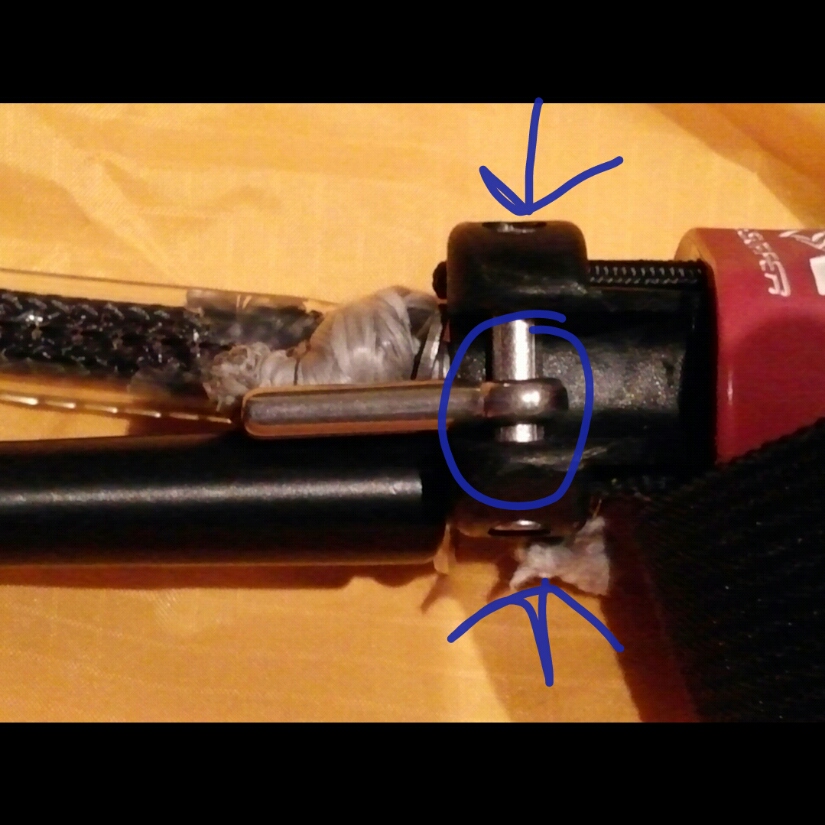

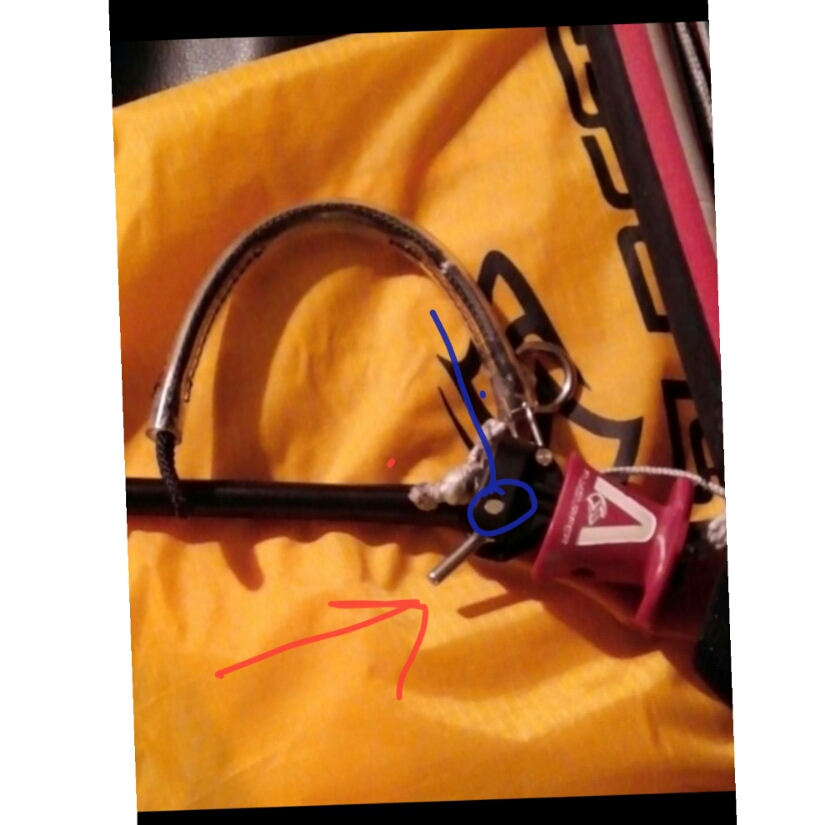

Here is the part.

IMG_19112018_192634_(825_x_825_pixel).jpg - 238kB 1542681187383_0_IMG_19112018_192723_(825_x_825_pixel).jpg - 233kB

IMG_19112018_192520_(0825_x_825_pixel).jpg - 199kB




Gin: Shaman
Ozone: IMP Quattro, Access
HQ: Beamer
PL: Viper, Core, Vapor
Flexi: Bullet, Rage
PKD: Buster Soulfly
Flysurfer: Peak, Peak2
NPW5

VTT Stinger Race
MK Splitter AQR
View user's profile View All Posts By User
eric67m


Avatar


Posts: 540
Registered: 9-11-2015
Location: Monroe, Washington
Member Is Offline


[*] posted on 11-19-2018 at 10:47 PM


I have that same setup on the bar that came on my peak 12m. The cross pin appears to be pressed in and not removable.

The other side with the loop is retained by a removable pin held from falling out by a small split ring.

I would think that it would only be a complete assembly replacement or possibly replacing the black plastic/pin assembly, and tying the bungie's for tension.




Flying A mixed quiver of Flysurfer Peak kites.

Rollin in the Popeye The Welder Playa buggy.
View user's profile View All Posts By User
Kamikuza


Avatar


Posts: 6410
Registered: 1-9-2005
Location: Shiga, JAPAN
Member Is Offline


[*] posted on 11-20-2018 at 03:00 AM


So the pin isn't flopping down smoothly when you pull the QR? Is it binding when there's no load on it?



Yeah... I got a kite. Or two...
View user's profile Visit user's homepage View All Posts By User
utahtami


Avatar


Posts: 198
Registered: 1-20-2013
Location: Basalt, CO
Member Is Offline

Mood: Here comes the wind, I'm sure of it

[*] posted on 11-20-2018 at 08:11 AM


Eric, that is exactly it, but I was hoping someone would say you simply tap out the pin and easily find a replacement swivel.

Yes, Kam, it binds without any load.




Gin: Shaman
Ozone: IMP Quattro, Access
HQ: Beamer
PL: Viper, Core, Vapor
Flexi: Bullet, Rage
PKD: Buster Soulfly
Flysurfer: Peak, Peak2
NPW5

VTT Stinger Race
MK Splitter AQR
View user's profile View All Posts By User
Wind_dog


Avatar


Posts: 225
Registered: 3-15-2016
Location: Oregon
Member Is Offline

Mood: Itchin' for the beach

[*] posted on 11-20-2018 at 09:03 AM


Tami,
Peak 1, uh, . . . . , err,. . . . um, . . . that doesn't sound safe at all.
I hate to hear about you being at risk.
Please just send the kite to me directly to prevent any mishaps.
Rick




Always on the steep part of the learning curve.
Gin Shaman2 6m, 12m
Flysurfer Peak1 6m, Peak2 9m
Misc. other kites, not getting out of their bags.
Riding in a Libre Fullrace with an AQR
And a Blokart when gust factor > 4.
View user's profile View All Posts By User
Windstruck


Avatar


Posts: 3191
Registered: 5-16-2015
Location: Park City, UT, USA
Member Is Offline

Mood: Missing my power kiting friends

[*] posted on 11-20-2018 at 10:11 AM


Quote: Originally posted by Wind_dog
Tami,
Peak 1, uh, . . . . , err,. . . . um, . . . that doesn't sound safe at all.
I hate to hear about you being at risk.
Please just send the kite to me directly to prevent any mishaps.
Rick


Rick - AKA "The Giver" :lol:




Born-Kites:
RaceStar+ (3.0m, 5.0m, 7.0m, 9.0m, 11.0m, 14.0m)
RaceStar (5.0m, 9.0m, 11.0m)
NasaStar-4 (2.5m, 4.0m, 5.5m, 7.0m)
NasaStar-3 (custom 3.2m)

Buggy:
Peter Lynn BigFoot+ nose & tail; midsection VTT rail & seat kit; home-brewed AQR

NAPKA Member US2815
SWATK Member UT0003
View user's profile View All Posts By User
Feyd


Avatar


Posts: 2934
Registered: 1-3-2009
Location: North Conway New Hampshire USA
Member Is Offline

Mood: Itchin' for winter.

[*] posted on 11-20-2018 at 11:10 AM


Tami, Do me a favor and send me the images of your QR and is possible even a little video of the action. If it's something that can't be a simple fix, I have them in stock.




Chris Krug-Owner @ Hardwater Kiting. Authorized Dealer of Ozone, HQ and GIN kites.
www.hardwaterkiter.com 518-407-KITE
View user's profile Visit user's homepage View All Posts By User
Kamikuza


Avatar


Posts: 6410
Registered: 1-9-2005
Location: Shiga, JAPAN
Member Is Offline


[*] posted on 11-20-2018 at 07:00 PM


That's bizarre, I've never heard of that :o I'm assuming of course that there's no grit or salt packed into the eye of the pin? No damage to the black body?

If the pin was pressed in, it can be pressed out. I've removed/replaced pins on the Infinity 1 without issues.




Yeah... I got a kite. Or two...
View user's profile Visit user's homepage View All Posts By User
rtz


Avatar


Posts: 1070
Registered: 10-12-2010
Location: Edmond, OK
Member Is Offline


[*] posted on 11-20-2018 at 07:44 PM


Rotate the pin back and forth a few hundred times and it will smooth out the action.



Sting 1.7 - Flow 2, 3, 4, 5 - Reactor 2.2, 2.8, 3.5, 4.4, 5.5 - Yakuza 2.2, 2.7 - JOJO 9
View user's profile View All Posts By User
utahtami


Avatar


Posts: 198
Registered: 1-20-2013
Location: Basalt, CO
Member Is Offline

Mood: Here comes the wind, I'm sure of it

[*] posted on 11-23-2018 at 06:46 PM


Rick, I should have guessed you would be looking out for me!

Chris, thanks for the generous offer to get it all fixed up. Most appreciated.
