Author: Subject: flexi sabre mk1
m00ms




Posts: 191
Registered: 12-28-2015
Member Is Offline


[*] posted on 10-27-2018 at 07:28 AM
flexi sabre mk1


hi all,

does anyone have any experiance of flexifoil sabre mk1s as i brought a cheap clean 7m to use over winter to practice landboarding with so it doesnt matter if i crash or trash it.

previous owner disconnected the lines and extensions from the kite and even with looking on the sabre instructions i am damned if i can work it out!! thought i had it but when you launch it pulling centre lines it rises up but drops back down so as you let them go and steering seams to do nothing!!

i can see me giving up and re selling it but before i do any help would be great.

thanks
View user's profile View All Posts By User
cheezycheese


Avatar


Posts: 3721
Registered: 8-18-2009
Location: Poughkeepsie, NY
Member Is Offline

Mood: Ready for action !!!

[*] posted on 10-27-2018 at 07:53 AM


Maybe you have lines attached incorrectly ? Do you have center lines attached to upper bridle and outer lines to lower bridle attachment points?



US888
PL- Aero v1 11m / Phantom 6/9/12/15/18
Ozone Chrono v2 9m
Liquid Force Elite 6.5m
Flysurfer - Peak 3 12m / Outlaw 10m
Ted\'s Profoil-1m/3.5m
PKD - Century 2.5m, Soulfly 3.5m
Pansh- BlazeII 7m (tuned by Blake)
Custom NABX Rev
GT Rapide V/VTT-XR+ Special
View user's profile View All Posts By User
Feyd


Avatar


Posts: 2899
Registered: 1-3-2009
Location: North Conway New Hampshire USA
Member Is Offline

Mood: Itchin' for winter.

[*] posted on 10-27-2018 at 09:56 AM


The Sabre 1 was a great kite! The line set up is a little odd with the way it crosses. Basically like a pulley bar but in the lines, not at the bar.

Here's a link to the PDF that illustrates the set up.

http://www.flexifoil.com/template/Manuals/Sabre%20I.pdf

Its a great kite. Much better than the Sabre 2 IMO. The only weakness, the leading edge vents. The material (mesh) they used gets snagged and over time tightens. This will eventually restrict airflow.

if you get to that point, you can cut the mesh out. It is not structural. And the kite will fly normally again.




Chris Krug-Owner @ Hardwater Kiting. Authorized Dealer of Ozone, HQ and GIN kites.
www.hardwaterkiter.com 518-407-KITE
View user's profile Visit user's homepage View All Posts By User
m00ms




Posts: 191
Registered: 12-28-2015
Member Is Offline


[*] posted on 10-27-2018 at 10:17 AM


hi cheezy cheese theres more to it than just power and brake lines as theres a crossover line and pulleys in which seam to connect the leading and trailing edges together.

thanks feyd for the pdf which is the one that i used,there seamed to be two loops red lines connecting to one knot on the kites bridles and then where the main 25m lines connect to the extensions as flexifoil call it there was three loops so no idea how to connect those correctly!

why couldnt previous owner of left it connected!!
View user's profile View All Posts By User
shehatesmyhobbies


Avatar


Posts: 3635
Registered: 2-23-2009
Location: Clayton, DE
Member Is Offline

Mood: Serious Buggy withdraws!

[*] posted on 10-27-2018 at 03:01 PM


Where you located mooms, maybe someone nearby is available to give you a hand getting it sorted out. I would jump at the chance myself as I loved these kites and for whatever reason I get happy messing with line sets. Once you get it sorted you won't be disappointed.

I remember once Cheezy sent me a tangled ball of lines. Made my weekend :D

I know you aren't messing with a big knot of lines, but in a way it's almost the same.






Rich
NAPKA President
US 66
www.napka.org

302 480 6008

Phantoms!
My ride: GT Rapide
Check out the Wildwood Buggy Bash Facebook page!
View user's profile View All Posts By User
indigo_wolf


Avatar


Posts: 5082
Registered: 12-25-2008
Location: Washington, DC area
Member Is Online

Mood: Weaned by leopards, raised by wolves...

[*] posted on 10-27-2018 at 06:07 PM


Might be worth it to get a quote from WindFire Designs, FixMyKite, or Powerzone Kitesports on how much they would charge to rebridle the kite.

ATB,
Sam




"I never had any friends later on like the ones I had when I was 12 - Jesus, does anyone?" - The Body by Stephen King
View user's profile View All Posts By User
m00ms




Posts: 191
Registered: 12-28-2015
Member Is Offline


[*] posted on 10-28-2018 at 05:35 AM


hi shehatesmyhobbies,

sounds you would be the man for the job on this,i am south uk so guess were have some water between us!!

hats off for enjoying tangled messes and having the paitence to do so.if you have knowledge of mk1 sabres would i be able to pm you some photos of where im confused to see if you could point me in some direction? there seams to be many more sticthed loops than knots to be able to larks head them too.

if so i will hold off from re selling it and see it between us we can bridle it correctly.
View user's profile View All Posts By User
shehatesmyhobbies


Avatar


Posts: 3635
Registered: 2-23-2009
Location: Clayton, DE
Member Is Offline

Mood: Serious Buggy withdraws!

[*] posted on 10-28-2018 at 06:02 AM


Shoot me a couple pics to my email address. I will send that via U2U. It may be very tough through pictures but I will look for sure.





Rich
NAPKA President
US 66
www.napka.org

302 480 6008

Phantoms!
My ride: GT Rapide
Check out the Wildwood Buggy Bash Facebook page!
View user's profile View All Posts By User
jy1zoom


Avatar


Posts: 151
Registered: 6-1-2013
Location: Richmond BC Canada
Member Is Offline


[*] posted on 10-31-2018 at 11:33 AM
sabre1 lines

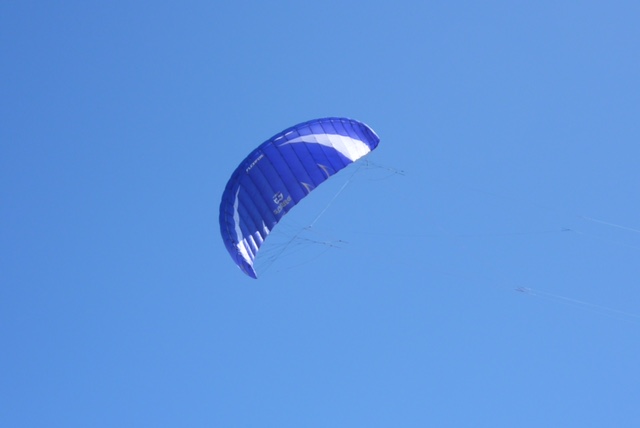

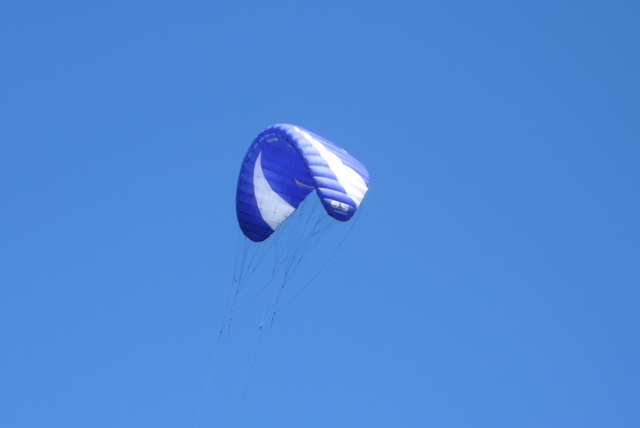

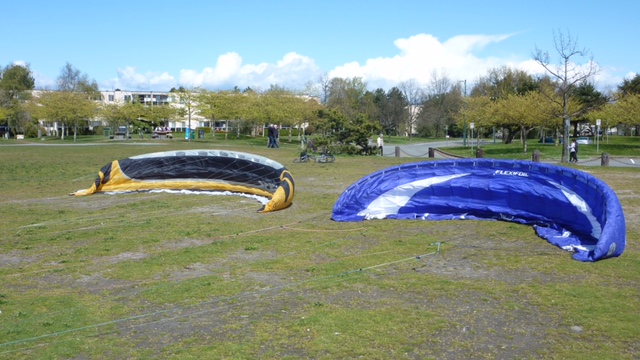

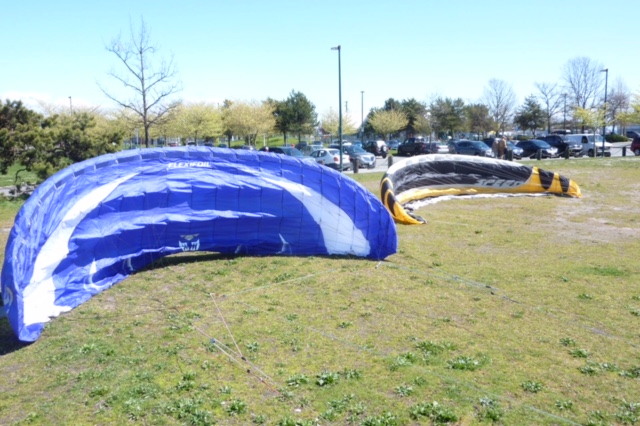

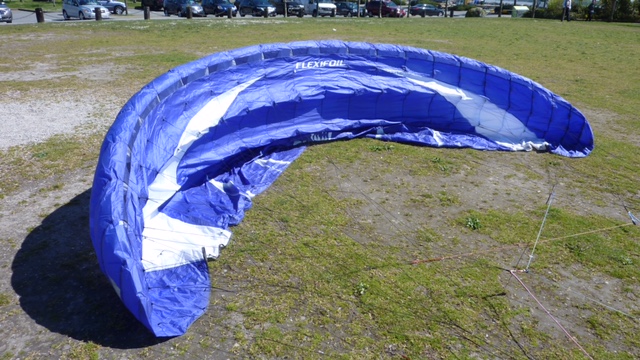

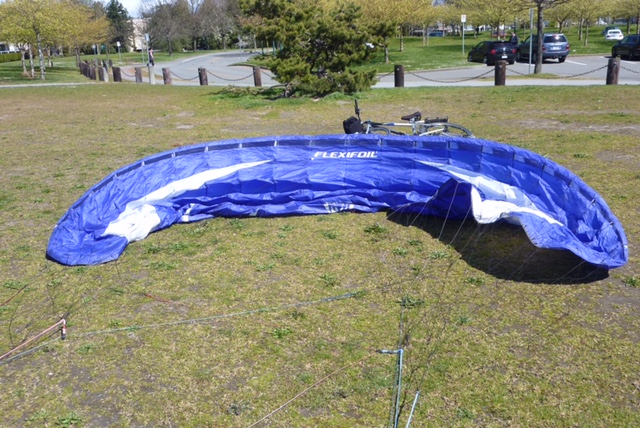

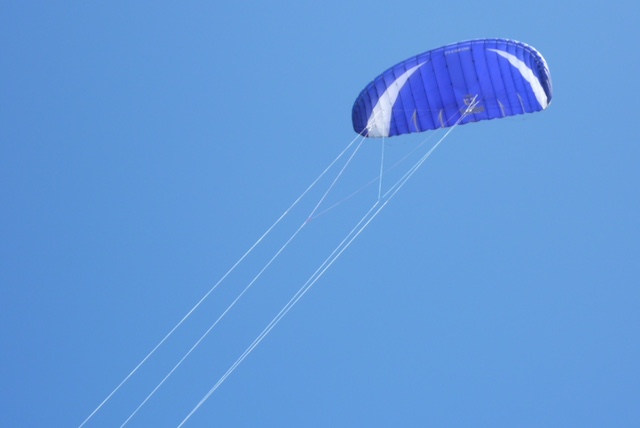

Not sure if these pics help. The resolution pkf allows to upload is low. Its a crossover bridle system which seems to assist with tighter turns. Interesting that it has 5 rows of bridle A,B,C,D, and Z lines. Its a single pulley depower system (per side) with pulleys for the crossover lines. Nice flying kite. Good in gusty winds. I would say the crossover system doesnt have any multiplier effect. Good landboarding kite. Despite the complicated bridle, its an easy stable beginner kite.

CB1A7088-DAD2-4672-814C-4A0CB4BF0B7B.JPG - 170kB BFCE2217-8B21-47C3-B1B3-93284CA96268.JPG - 33kB FDDEA4F8-B686-42E0-95F4-99A8FA1792E9.JPG - 39kB 8803ECF2-E620-4A2E-B042-6D3AB2BFE2B2.JPG - 32kB CB1A7088-DAD2-4672-814C-4A0CB4BF0B7B.JPG - 170kB 2A691964-9E51-4EFF-96D2-EF1E55414044.JPG - 138kB 867B447F-A098-44A6-9095-9491A043551E.JPG - 131kB DA72DDAF-9370-4AE8-89F4-0E34FC893DAC.JPG - 114kB




Flysurfer, Ozone, Flexifoil, Peter Lynn, Trampa, MBS
View user's profile View All Posts By User
m00ms




Posts: 191
Registered: 12-28-2015
Member Is Offline


[*] posted on 11-2-2018 at 10:07 AM


thanks everyone for your help with this kite and im sure we will get this sorted soon.

thanks jy1zoom for your photos which will be a great help,is that your kite? if so do you have photos of the larks head connections on the kite end as i seam to have more loops than knots so those would be fantastic and probably able me to sort this?

i look forward to getting this kite connected correctly and getting to fly it!
