Author: Subject: Fabric for buggy side rail covers
MadHungarian


Avatar


Posts: 46
Registered: 4-1-2017
Location: Denver, CO
Member Is Offline


[*] posted on 4-25-2018 at 10:10 PM
Fabric for buggy side rail covers


I'm considering making my own side rail covers because I recently acquired an older model BBS buggy and need to add padding to the side rails to snug up the fit for me. The existing rail covers look like some kind of cordura or ballistic nylon with a rubberized backing, but I'm not a fabric expert.

If anyone has made their own rail covers, can you recommend a fabric and source? Thanks.




Born LS2 3.5m
Flexifoil Rage II 1.8m, Rage 2.5m, Blurr 3.5, 5m
GIN Yeti 8m
HQ Toxic 3m, Beamer V 4m
Ozone Method 2.3m, Access XT 6m
PKD Century II Soulfly 2.2, 2.8, 3.5, 4.5, 6, 8m
PL Voltage 3m
MBS Core 94, PL Comp XR+ and BBS Cruiser buggy, Blokart
NAPKA US14
View user's profile View All Posts By User
jimbocz




Posts: 224
Registered: 6-25-2010
Location: Twickenham, United Kigdom
Member Is Offline


[*] posted on 4-26-2018 at 12:34 AM



https://imgur.com/a/HY8qcbv


Here is a bad close up picture of the side rail covers that my wife made for me. She just used cordura, which is widely available. I think we got ours from Ebay.

The tricky bit is where it bends, the highest part of the cover in this picture. A simple straight tube won't stretch over a bend like that and look OK. My wife did the cutting and sewing (I believe it's called a "ruck") necessary for it to fit correctly.

For the ends, most people just use cable ties but I decided to use paracord becuase we had some handy. I like it becuase it's colorful and not plastic.

HTH
View user's profile View All Posts By User
indigo_wolf


Avatar


Posts: 5072
Registered: 12-25-2008
Location: Washington, DC area
Member Is Offline

Mood: Weaned by leopards, raised by wolves...

[*] posted on 4-26-2018 at 03:41 AM


If you can find a camping supply store with an inhouse repair department they will usually sell you Cordura or ballistic nylon by the yard. It might cost a bit more than eBay, but it's nice to actually be be able to handle the material and get a feel for how much you want to buy. More importantly if you underestimate, you can always go back for more without taking another shipping burn.

I wouldn't expect Denver to be in any shortage of that type of store ;)

ATB,
Sam

P.S. Colorado Fabrics in Aurora, CA seems to have a selection of Cordura and other recreation fabrics.

http://www.coloradofabrics.com/departments/cf-recreation


P.P.S. If none of those options don't work for you, Quest Outfitters in Sarasota, FL is another option. If they don't have it, you don't need it.

http://www.questoutfitters.com/coated.html




"I never had any friends later on like the ones I had when I was 12 - Jesus, does anyone?" - The Body by Stephen King
View user's profile View All Posts By User This user has MSN Messenger
sand flea


Avatar


Posts: 585
Registered: 12-2-2010
Location: Portland Oregon
Member Is Offline

Mood: non significant wind chaser

[*] posted on 4-26-2018 at 04:12 AM


I use black 3 inch wide gaffers tape.
View user's profile View All Posts By User
smiler8401


Avatar


Posts: 50
Registered: 4-29-2013
Location: Pasir gudang , malaysia
Member Is Offline


[*] posted on 4-26-2018 at 05:16 AM


vinl fabric for car seat sewn with velco to warp around side rail .
I order mine from local custom made car seat shop .


something like this , shipping free.

https://www.amazon.com/Vinyl-Royal-Blue-Fabric-Yard/dp/B06XG...




Kites : NPW21 2m , NPW21 8.2m , NPW9 12m
Ozone Manta I 12m
Peter Lynn Pepper 4.5m , Venom II 16m
RRD Vision 13.5m
Ride : Radsail RKB R1
Cabrinha custom 133 x 40
View user's profile View All Posts By User
MadHungarian


Avatar


Posts: 46
Registered: 4-1-2017
Location: Denver, CO
Member Is Offline


[*] posted on 4-26-2018 at 11:23 AM


Thanks for the responses.

Jim you make a good point. If I'm going to make my own then I may as well tailor it to fit nicely around all the bends.

Sam - I'll check out some of the fabric suppliers you've indicated. It would be nice to see it before purchasing.

Guess I'll post some photos when I complete the project to close out this thread.




Born LS2 3.5m
Flexifoil Rage II 1.8m, Rage 2.5m, Blurr 3.5, 5m
GIN Yeti 8m
HQ Toxic 3m, Beamer V 4m
Ozone Method 2.3m, Access XT 6m
PKD Century II Soulfly 2.2, 2.8, 3.5, 4.5, 6, 8m
PL Voltage 3m
MBS Core 94, PL Comp XR+ and BBS Cruiser buggy, Blokart
NAPKA US14
View user's profile View All Posts By User
Windstruck


Avatar


Posts: 2926
Registered: 5-16-2015
Location: Park City, UT, USA
Member Is Offline

Mood: Excited for my incoming 2.5m NS4!

[*] posted on 4-26-2018 at 11:54 AM


Quote: Originally posted by MadHungarian
Thanks for the responses.

Jim you make a good point. If I'm going to make my own then I may as well tailor it to fit nicely around all the bends.

Sam - I'll check out some of the fabric suppliers you've indicated. It would be nice to see it before purchasing.

Guess I'll post some photos when I complete the project to close out this thread.


All this talk about angle sewing, fabric, and the like. How about the important stuff like maintaining the flame look? Keep your eye on the prize! :lol:




Kites:
Born-Kite RaceStar (5.0m, 7.0m, 9.0m, 11.0m)
Born-Kite NasaStar-3 (1.5m, 3.2m)
Born-Kite NasaStar-4 (2.5m)

Buggy:
Hybrid - nose & tail PL BF+ with wide rear axle; midsection VTT rail & seat kit; two sets of Sysmic rims (BigFoots and 6-ply trailer tires); BigKid's AQR

NAPKA Member US2815
SWATK Member UT0003
View user's profile View All Posts By User
MadHungarian


Avatar


Posts: 46
Registered: 4-1-2017
Location: Denver, CO
Member Is Offline


[*] posted on 4-26-2018 at 01:03 PM


Steve - Upon closer inspection of the two seats it turns out that the Flame seat is not quite as nice or comfortable as the other one. Which probably explains why the seller wasn't using the Flame seat and rail covers. I considered just putting on the Flame rail covers because the padding is slightly thicker, but it still won't be enough to make a difference. So now I'm going to significantly pad out the inside of the rails only where it contacts the rider. And so I'm definitely going to have to customize the covers. I suppose that doesn't preclude a Flame motif, but it might be a bit flash for me. You on the other hand could really rock that look!



Born LS2 3.5m
Flexifoil Rage II 1.8m, Rage 2.5m, Blurr 3.5, 5m
GIN Yeti 8m
HQ Toxic 3m, Beamer V 4m
Ozone Method 2.3m, Access XT 6m
PKD Century II Soulfly 2.2, 2.8, 3.5, 4.5, 6, 8m
PL Voltage 3m
MBS Core 94, PL Comp XR+ and BBS Cruiser buggy, Blokart
NAPKA US14
View user's profile View All Posts By User
Windstruck


Avatar


Posts: 2926
Registered: 5-16-2015
Location: Park City, UT, USA
Member Is Offline

Mood: Excited for my incoming 2.5m NS4!

[*] posted on 4-26-2018 at 01:10 PM


Quote: Originally posted by MadHungarian
Steve - Upon closer inspection of the two seats it turns out that the Flame seat is not quite as nice or comfortable as the other one. Which probably explains why the seller wasn't using the Flame seat and rail covers. I considered just putting on the Flame rail covers because the padding is slightly thicker, but it still won't be enough to make a difference. So now I'm going to significantly pad out the inside of the rails only where it contacts the rider. And so I'm definitely going to have to customize the covers. I suppose that doesn't preclude a Flame motif, but it might be a bit flash for me. You on the other hand could really rock that look!


No worries - the red and black higher quality seat is really good looking in its own right. I just loved the flames. I'm actually trying somewhat to work something out to pimp my ride, but won't give too much away here. Better to surprise people if I work it out which at this point is far from a done deal. :cool:




Kites:
Born-Kite RaceStar (5.0m, 7.0m, 9.0m, 11.0m)
Born-Kite NasaStar-3 (1.5m, 3.2m)
Born-Kite NasaStar-4 (2.5m)

Buggy:
Hybrid - nose & tail PL BF+ with wide rear axle; midsection VTT rail & seat kit; two sets of Sysmic rims (BigFoots and 6-ply trailer tires); BigKid's AQR

NAPKA Member US2815
SWATK Member UT0003
View user's profile View All Posts By User
markite


Avatar


Posts: 1698
Registered: 3-8-2004
Location: Cambridge, ON, Canada
Member Is Offline


[*] posted on 4-26-2018 at 01:11 PM


i think you've got it sussed out - I've made a few different covers just for kicks changing colour etc.
I have a big fabric place near me that is an old mill / warehouse and you never know what you'll find. I've made some of corder and some out what is a heavier weight nylon like ballistic - sometimes with coated back that is the usual and some that are rubberized. I've also made one set of sparkly metallic flake vinyl wit when i took it to somewhere hot I remember it was very sticky and the vinyl got hot so never again. I was posting through some animal prints in the outdoor fabric, not really upholstery but kind of a laminated layered fabric with the printed surface outside that has held up remarkably well - I think the leopard material is well over 10 years old now. That one is just as a tube and slid it on. Others I've used velcro but the tube was dead simple as long as no frame support on the side rail to block it.

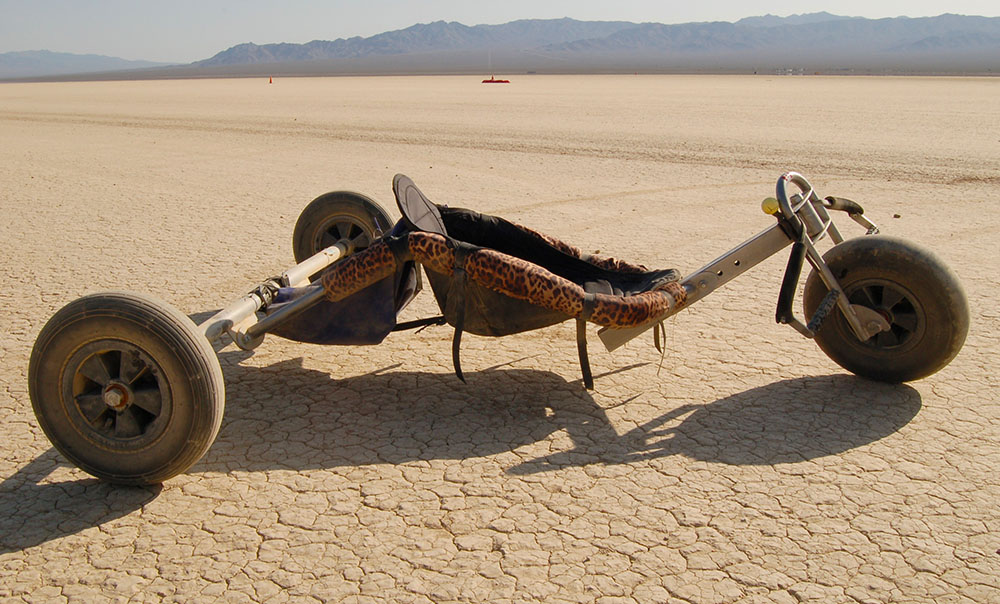

Marks buggy.jpg - 200kB




Mark Groshens NAPKA KC 13
WindSpeed kites & design - Canada
Peter Lynn: Ch2 22 +18 + 15 + 6.5, Scorp 16 + 10, Phantom II 12 + 9, Orig Phantom 9 + 6, Syn 8, Charger I 6, F 1200, 840
Ocean Rodeo: Flite 17 + 12, Rise 13 + 10 + 7, Razor 9 + 6
Foils: PL Leopards and Lynx, Airea Raptors, some PL Reactor IIs + IIIs, Libre Spirits, Cross Kite Sonics, Ozone Flow
Peter Lynn Kite Cat for cruising the lakes
buggies: PL XR+, Cameleon Pagona, custom bigfoot, PL Bigfoot, custom ice buggy
Boards: 2 custom directionals, O.R Surf series 6-3 and 5-11, Mako Duke, Mako Skinny, Mako 140 Wide, Mako 150 Wide, Mako King, Brunotti
lots of old school skis, snowboard
View user's profile View All Posts By User
MadHungarian


Avatar


Posts: 46
Registered: 4-1-2017
Location: Denver, CO
Member Is Offline


[*] posted on 4-26-2018 at 04:09 PM


That leopard print is quite distinctive. Guess I'll have to see what kind of variety they have at the local recreational fabric store.



Born LS2 3.5m
Flexifoil Rage II 1.8m, Rage 2.5m, Blurr 3.5, 5m
GIN Yeti 8m
HQ Toxic 3m, Beamer V 4m
Ozone Method 2.3m, Access XT 6m
PKD Century II Soulfly 2.2, 2.8, 3.5, 4.5, 6, 8m
PL Voltage 3m
MBS Core 94, PL Comp XR+ and BBS Cruiser buggy, Blokart
NAPKA US14
View user's profile View All Posts By User
MadHungarian


Avatar


Posts: 46
Registered: 4-1-2017
Location: Denver, CO
Member Is Offline


[*] posted on 10-22-2018 at 02:30 PM


I just wanted to wrap up this thread with the result. Thanks to all those that provided constructive advice. I'm posting this wrap up in the hope that it might help someone in the future faced with a similar situation.

I ended up buying ballistic nylon from a specialty sewing store in town (Colorado Fabrics). I then procrastinated, being a little intimidated at the prospect of sewing it with the machine I had.

On my most recent playa trip I took a shot to the ribs from the buggy rails beside the seat. It wasn't an OBE, just a hard sideways pull from the kite. This happened even though I was wearing plastic courage (motocross type body armor). It doesn't really provide protection on the side. There was very minimal padding on my rails and it caught me between a couple ribs. So when I returned from that trip I had new found motivation for this project.

I used rubberized pipe insulation and gorilla tape to significantly increase the padding adjacent to the rider. I didn't want to increase the padding elsewhere because that would cause issues with the seat attachment to the frame and to the attachment of the trunk bag.

But doing that makes for some strange geometry issues when trying to make rail covers. The previous covers were essentially straight tubes (or rectangular) with a Velcro seam and a cutout for a bar that connects the two rails in the rear. The previous covers were made from Cordura (I think).

I decided to attack the problem piecemeal. I made three sections per rail. The front section is a rectangle and has a dart to help reduce the puckering at the bend in the frame. The last section is a rectangle with a cutout for the rear stiffener bar. The middle section was most problematic because it has to taper from the large diameter of the increased padding to the smaller diameter of the old padding. I tried two different designs for this section. I'm not 100% satisfied with either, but I'm going to say good enough for now. If I ever do it again, I would probably just try a rectangle using the larger diameter and just live with the excess pucker on the ends.

There was a learning curve associated with the sewing of the ballistic nylon. I originally tried using heavy duty Coats and Clark outdoor thread. My machine wasn't happy with that thread, lots of bobbin thread breaks and snags. I eventually reverted to garden variety nylon thread that you can get at Walmart. Still had issues with needle thread breaks. I ultimately changed to using larger needles for sewing denim. That seemed to be the trick. I also had to change the needles out because the ballistic nylon will eventually dull the needles.

Sewing the hook part of the Velcro was also taxing. Not my favorite stuff to deal with.

I'll attempt to post some photos in a follow up (I have a feeling I might have issues doing that.)




Born LS2 3.5m
Flexifoil Rage II 1.8m, Rage 2.5m, Blurr 3.5, 5m
GIN Yeti 8m
HQ Toxic 3m, Beamer V 4m
Ozone Method 2.3m, Access XT 6m
PKD Century II Soulfly 2.2, 2.8, 3.5, 4.5, 6, 8m
PL Voltage 3m
MBS Core 94, PL Comp XR+ and BBS Cruiser buggy, Blokart
NAPKA US14
View user's profile View All Posts By User
MadHungarian


Avatar


Posts: 46
Registered: 4-1-2017
Location: Denver, CO
Member Is Offline


[*] posted on 10-22-2018 at 02:55 PM

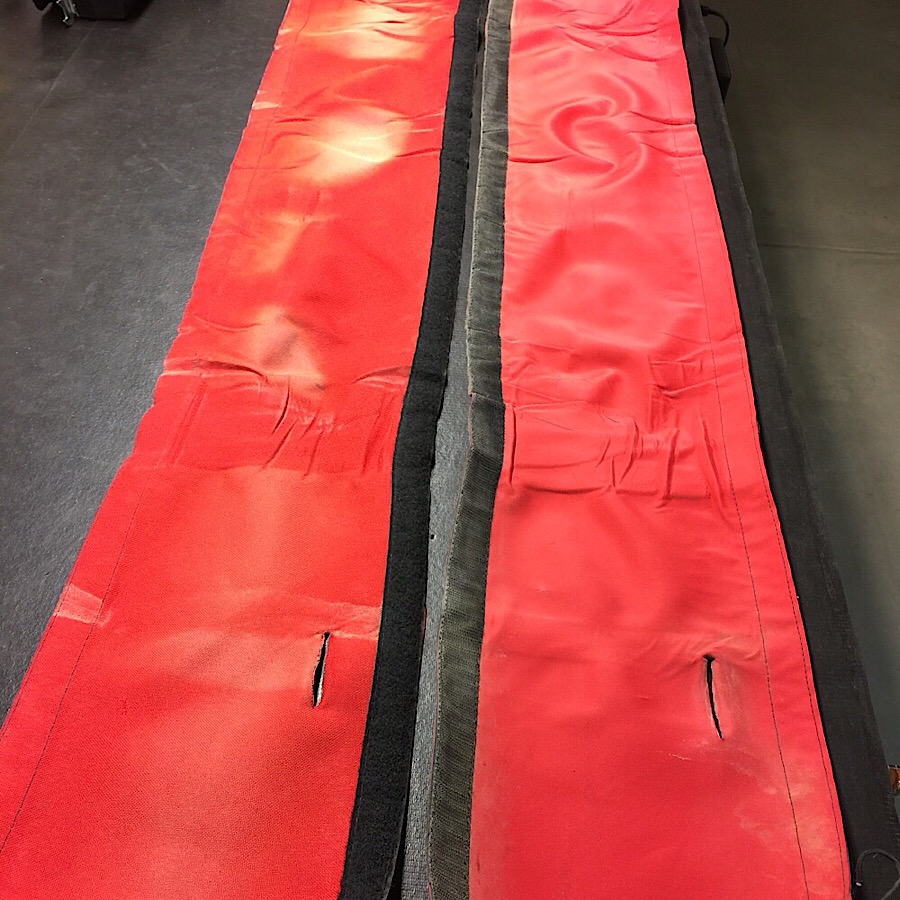

The old covers.

9E96F11E-C79C-4FA4-A069-0D1A31023F11.jpeg - 234kB

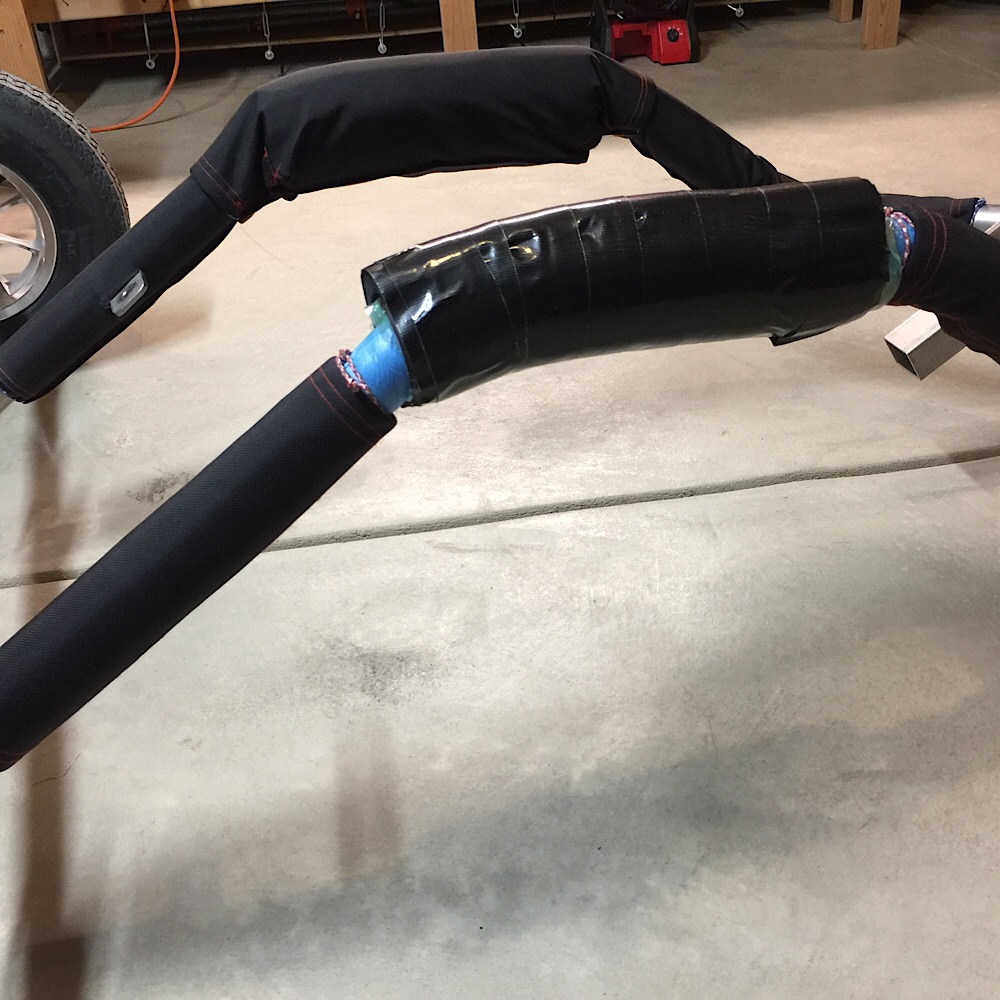

New covers, one middle section removed.

10F55F99-9583-4FEC-921A-41D3C52E064B.jpeg - 220kB

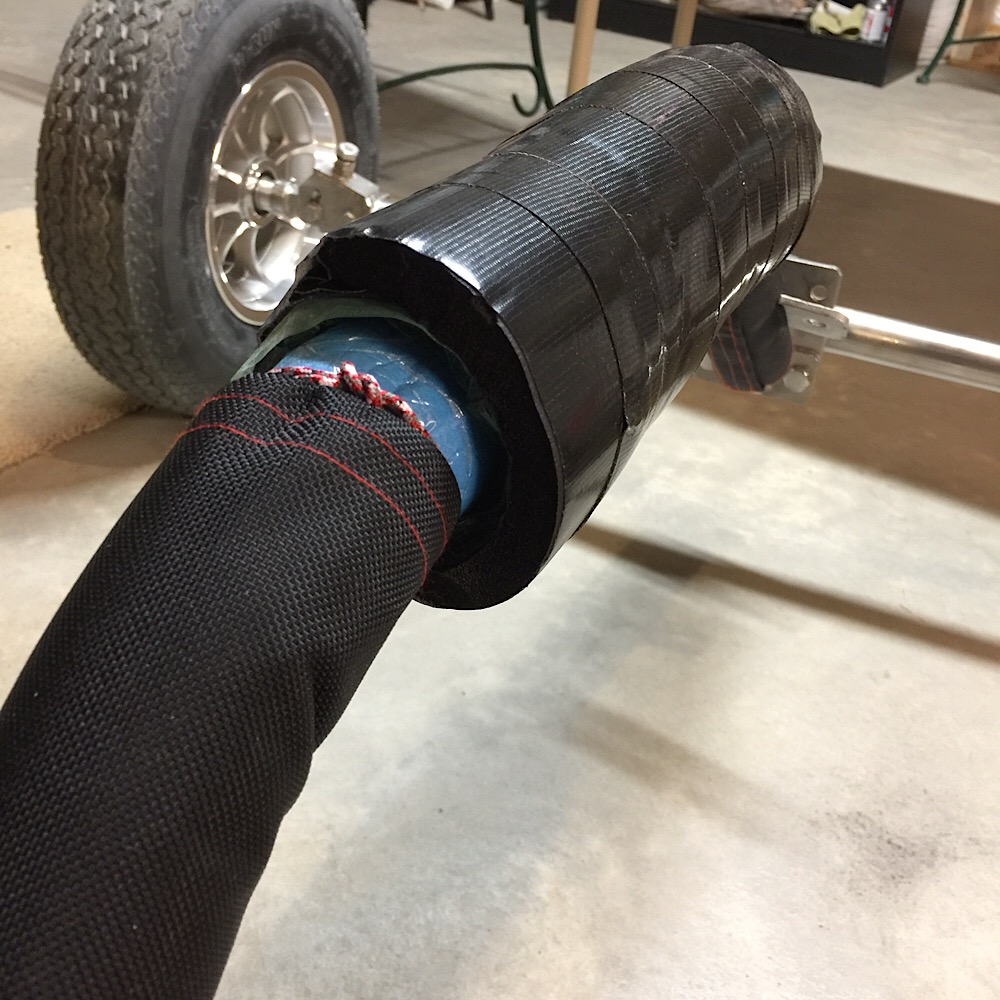

Closeup of new padding.

DCF8126C-578E-4917-8CA7-E81B6344425E.jpeg - 239kB

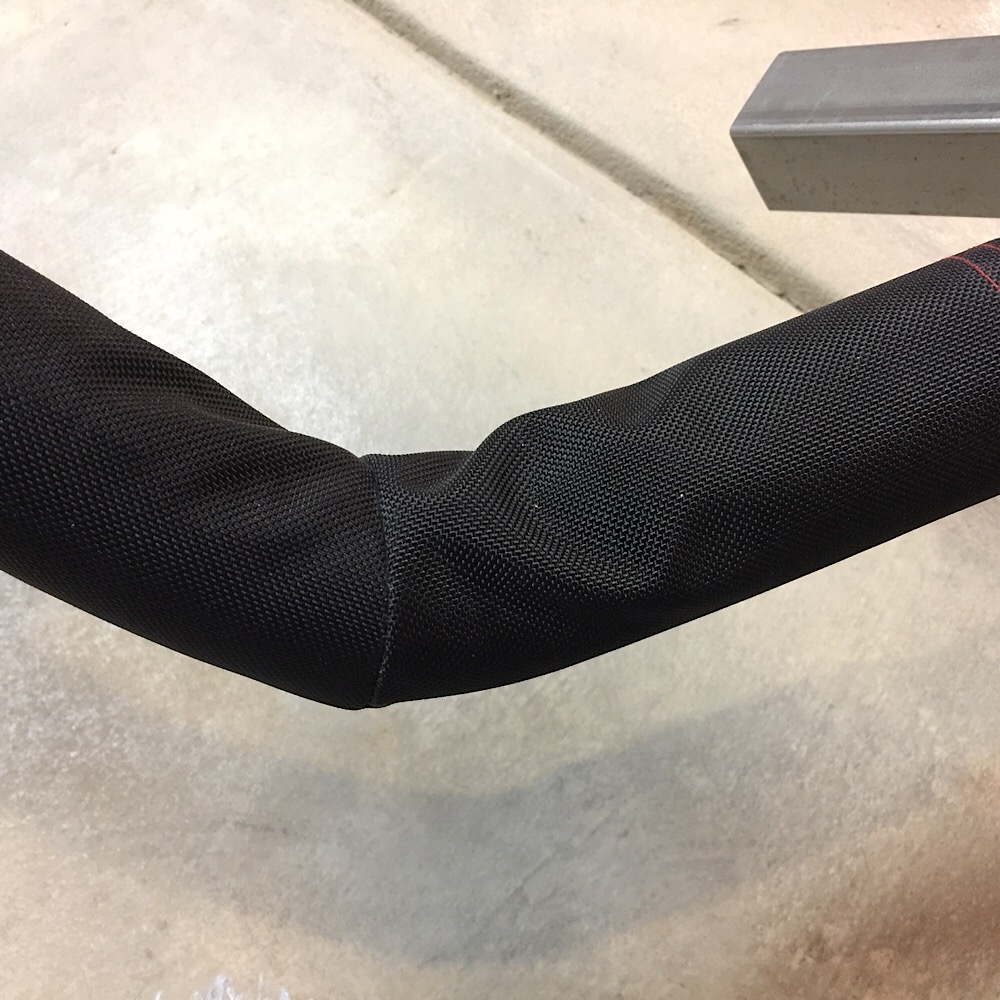

Front rail cover with dart at elbow.

FB308C08-87F5-4E2F-B0FE-B9C6FC3DA058.jpeg - 240kB

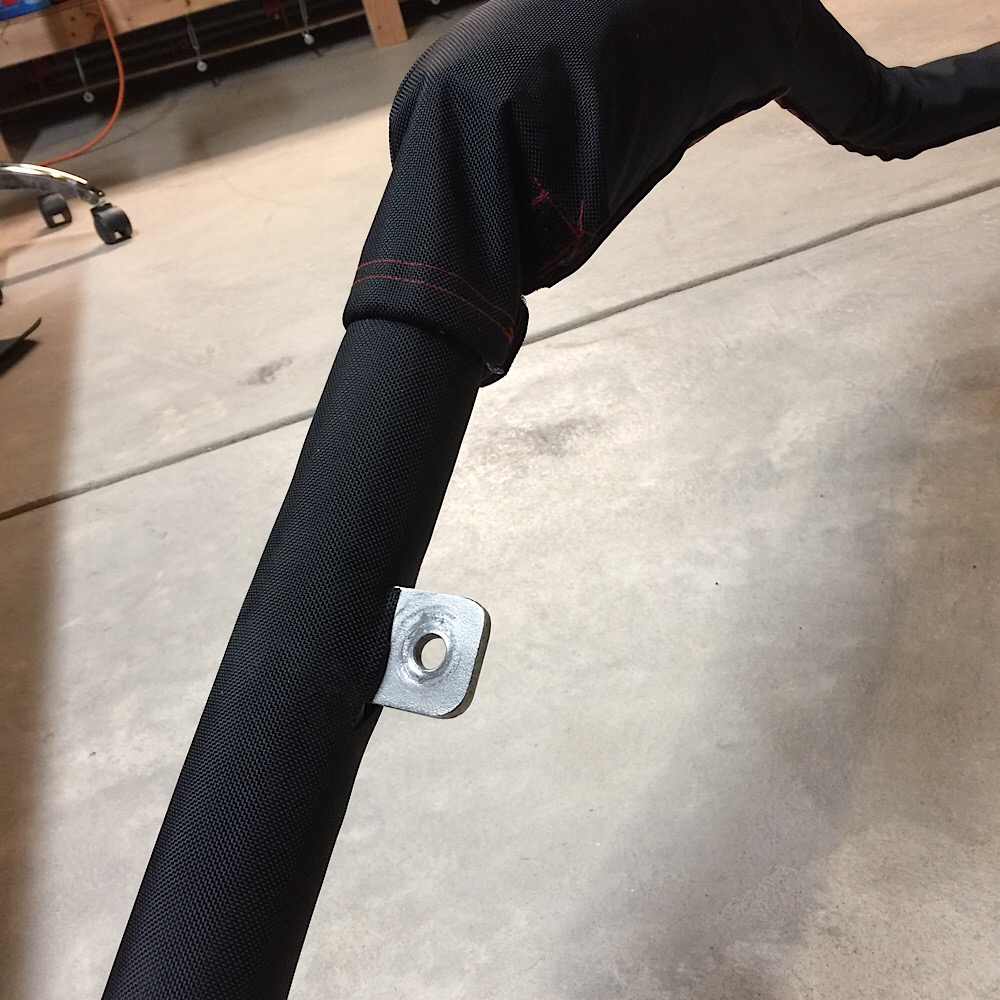

Showing rear section with cutout for stiffener bar.

02B611B3-668A-487F-BA84-BCFE74A46F02.jpeg - 243kB

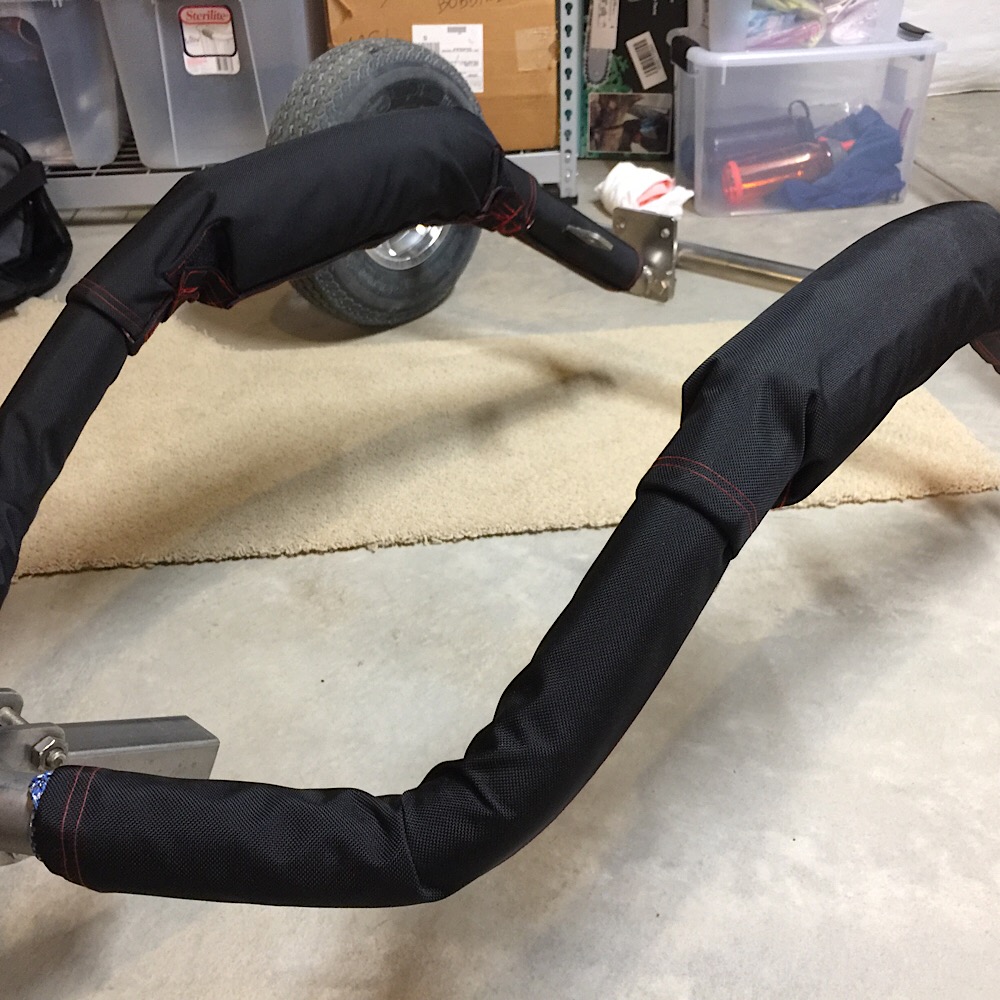

All new covers installed.

B3E8C3E7-629D-4245-BD0C-1C587C760E47.jpeg - 239kB

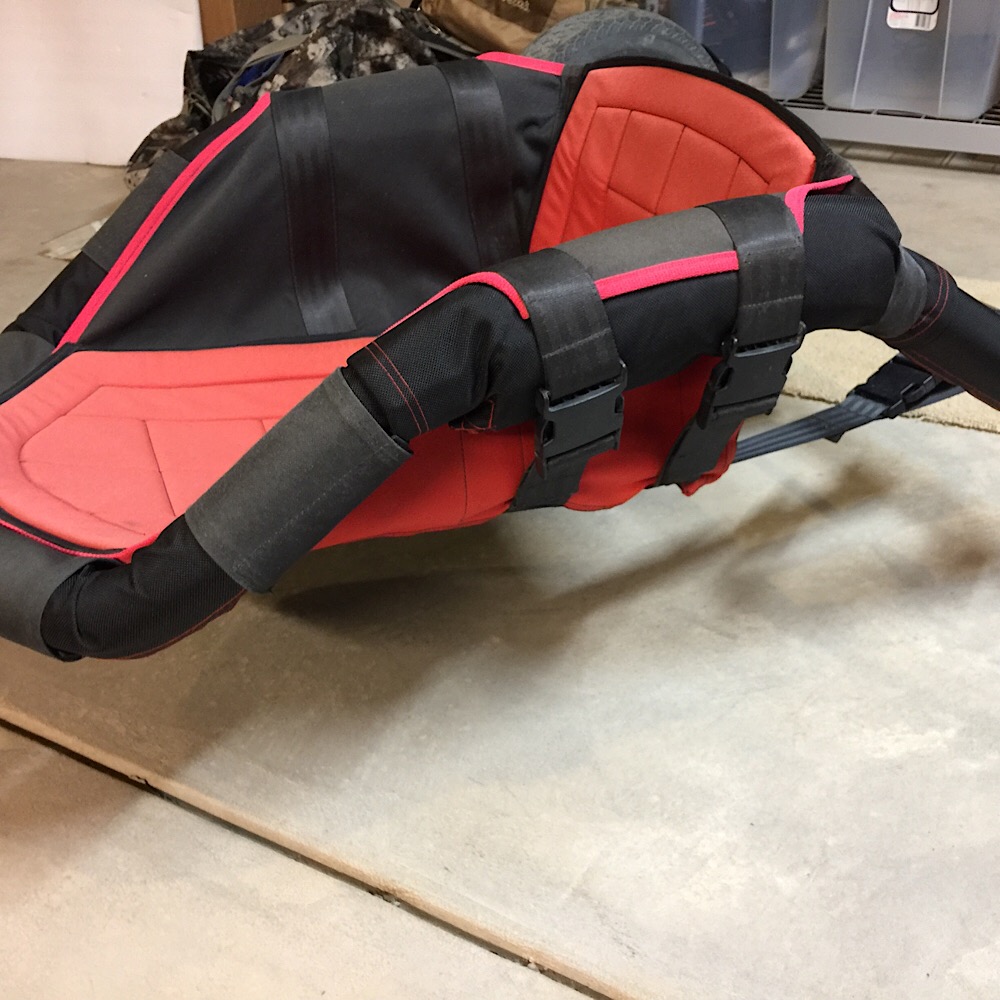

With seat installed.

DFA49DEC-0D42-4D98-9BE2-DE7C83827AAB.jpeg - 210kB





Born LS2 3.5m
Flexifoil Rage II 1.8m, Rage 2.5m, Blurr 3.5, 5m
GIN Yeti 8m
HQ Toxic 3m, Beamer V 4m
Ozone Method 2.3m, Access XT 6m
PKD Century II Soulfly 2.2, 2.8, 3.5, 4.5, 6, 8m
PL Voltage 3m
MBS Core 94, PL Comp XR+ and BBS Cruiser buggy, Blokart
NAPKA US14
View user's profile View All Posts By User
Windstruck


Avatar


Posts: 2926
Registered: 5-16-2015
Location: Park City, UT, USA
Member Is Offline

Mood: Excited for my incoming 2.5m NS4!

[*] posted on 10-22-2018 at 07:45 PM


Dick - those look OUTSTANDING. Very clean, neat, and clearly purpose build with padding right where you need it, and absent elsewhere where you don't. Well played! :thumbup:
