Author: Subject: Buggy Adjustments
Glx


Avatar


Posts: 174
Registered: 2-28-2017
Location: Massachusetts
Member Is Online

Mood: I need some more buggying!

[*] posted on 4-23-2018 at 06:32 PM
Buggy Adjustments

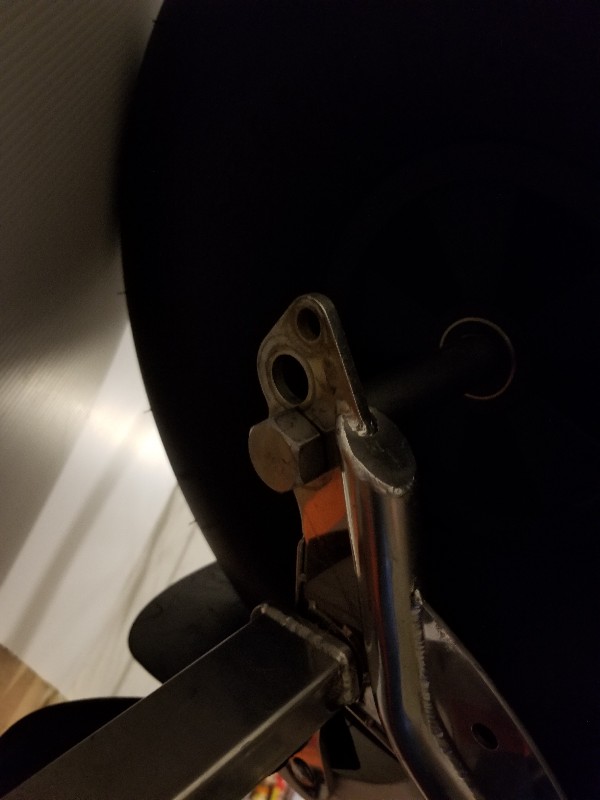

Besides the obvious width and height adjustments on the buggy there are also the adjustments for trail and rake based on the set of holes on the front fork.

20180423_202143-600x800.jpg - 49kB

While I have read the theory behind rake and trail changes, what difference should I expect on the way the buggy rides now that I moved the wheel from the back hole to the front hole. I was told by someone that it makes the buggy ride better upwind but not sure exactly how that works.

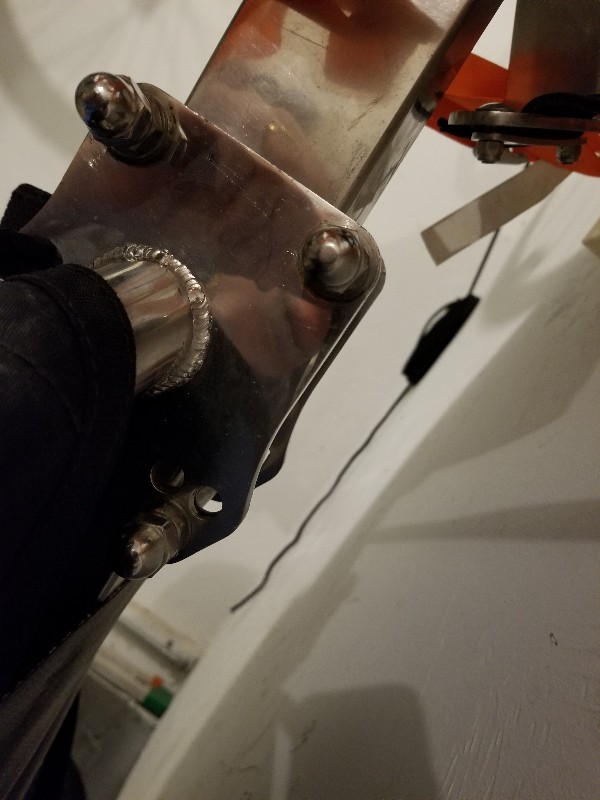

Another adjustment that I have absolutely no clue what effect it has on the buggy is at the neck connection. See picture below. I am set on the middle settig but have no clue what this will do to the buggy when changed. Looks like it might change neck angle which in combination with trail and rake affects handling. But not sure exactly how. Any ideas?

20180423_202217-600x800.jpg - 79kB




NAPKA US80

Kites:
Prism Snapshot 1.2 (This is what started the addiction)
Flexifoil Blurr 2.5, 3.5, 5.0
PKD Buster Soulfly 1.5, 3.3
PKD Buster Soulfly Pro 2.2, 4.4
PKD Century ii 3.5, 4.5, 6.0, 8.0, 10.0

Buggy:
Flexifoil Wide Axel
MG Supra
View user's profile View All Posts By User
BeamerBob


Avatar


Posts: 8201
Registered: 5-11-2007
Location: Down on the bayou
Member Is Online


[*] posted on 4-23-2018 at 06:59 PM


One affect of rake and trail is that the buggy tends to track straight with effort required to turn. The other way and the fork tends to dive into a turn and doesn't want to track straight. You want to to favor tracking straight. I think most important is tow point and front/rear balance. You want the buggy to be mostly even but the rear tires should break loose the most.



Coastal Wind Sports Team Rider
Landsegler Disc wheels
PTW Hero Buggy - XXtreme ApeXX Buggy US 88 - Libre Hardcore
IvanpahBuggyExpo.com
Youtube link
Bob Muse
HQ Montana VIII 8m, HQ Ignition LEI 5m, HQ Prodigy 3.4m, 10.5m
PL Phantom 6m, 12m, 15m, Big Blu 24m+, Synergy 10m, Venom 10m, 13m , Phantom II 6m, Vapors 2.7, 3.2, 3.8, 4.5, 5.4, Crosskite Sonic 7m, PKD Combat 10.3m
Uturn Butane 2.5m PKD Buster 3m Genetrix Hydra 7m Ozone Yakuza GT 14m
View user's profile Visit user's homepage View All Posts By User
Glx


Avatar


Posts: 174
Registered: 2-28-2017
Location: Massachusetts
Member Is Online

Mood: I need some more buggying!

[*] posted on 4-23-2018 at 07:38 PM


Thx. Mooved the wheel from the back hole (pictured) to the front hole. In theory that should increase rake/decrease trail and make the buggy more agile to turn, not sure though, so will have to experiment and see. Currently i think both front and back break at about the same time.



NAPKA US80

Kites:
Prism Snapshot 1.2 (This is what started the addiction)
Flexifoil Blurr 2.5, 3.5, 5.0
PKD Buster Soulfly 1.5, 3.3
PKD Buster Soulfly Pro 2.2, 4.4
PKD Century ii 3.5, 4.5, 6.0, 8.0, 10.0

Buggy:
Flexifoil Wide Axel
MG Supra
View user's profile View All Posts By User
bigkid


Avatar


Posts: 4167
Registered: 4-12-2009
Location: Somewhere on my own lakebed
Member Is Offline

Mood: :-)

[*] posted on 4-24-2018 at 05:17 AM


Moving the axle forward will make the buggy want to track straight ahead more at higher speeds, also makes it turn at lower speeds in a larger circle.
Move the axle to the back hole will make it turn a tighter radius at slower speeds and will make it much easier to turn at higher speeds.
Depends whether your into speed runs or better control at low speeds, something in the middle would be a good start. Or not...




Appex buggy, Libre hardcore buggies.
Flexboardz. Blokarts.
PKD Century Soulflys. NPW's. Nasa Stars.
A few other less flown oddballs,
Line sets from 10" to 328" or 2m to 100m.
worlds only AQR that works.
North American distributor for PKD.
"Kite Bugging is not an addiction until you try to quit".
View user's profile View All Posts By User
bigkid


Avatar


Posts: 4167
Registered: 4-12-2009
Location: Somewhere on my own lakebed
Member Is Offline

Mood: :-)

[*] posted on 4-24-2018 at 05:21 AM


Quote: Originally posted by Glx
Currently i think both front and back break at about the same time.

Sorry to say, the thinking part needs to be for SURE. Or not...




Appex buggy, Libre hardcore buggies.
Flexboardz. Blokarts.
PKD Century Soulflys. NPW's. Nasa Stars.
A few other less flown oddballs,
Line sets from 10" to 328" or 2m to 100m.
worlds only AQR that works.
North American distributor for PKD.
"Kite Bugging is not an addiction until you try to quit".
View user's profile View All Posts By User
Glx


Avatar


Posts: 174
Registered: 2-28-2017
Location: Massachusetts
Member Is Online

Mood: I need some more buggying!

[*] posted on 4-24-2018 at 06:21 AM


Thanks Jeff. The explanation above is exactly what I was looking for. I moved the wheel forward so this should help with the speed runs since I am still continuing on pushing the envelope with my PB.

I am not sure about what breaks first because not completly certain how to check. Currently I have been flying overpowered and fast and I start tacking the buggy upwind and bringing the kite slightly behind. Under that maneuver I feel the whole buggy starting to slide sideways at the same time. Is that the proper way of checking?




NAPKA US80

Kites:
Prism Snapshot 1.2 (This is what started the addiction)
Flexifoil Blurr 2.5, 3.5, 5.0
PKD Buster Soulfly 1.5, 3.3
PKD Buster Soulfly Pro 2.2, 4.4
PKD Century ii 3.5, 4.5, 6.0, 8.0, 10.0

Buggy:
Flexifoil Wide Axel
MG Supra
View user's profile View All Posts By User
BeamerBob


Avatar


Posts: 8201
Registered: 5-11-2007
Location: Down on the bayou
Member Is Online


[*] posted on 4-24-2018 at 07:42 AM


That's it. When you're giving her all she's got and the power overwhelms the traction, you find out how you are balanced.



Coastal Wind Sports Team Rider
Landsegler Disc wheels
PTW Hero Buggy - XXtreme ApeXX Buggy US 88 - Libre Hardcore
IvanpahBuggyExpo.com
Youtube link
Bob Muse
HQ Montana VIII 8m, HQ Ignition LEI 5m, HQ Prodigy 3.4m, 10.5m
PL Phantom 6m, 12m, 15m, Big Blu 24m+, Synergy 10m, Venom 10m, 13m , Phantom II 6m, Vapors 2.7, 3.2, 3.8, 4.5, 5.4, Crosskite Sonic 7m, PKD Combat 10.3m
Uturn Butane 2.5m PKD Buster 3m Genetrix Hydra 7m Ozone Yakuza GT 14m
View user's profile Visit user's homepage View All Posts By User
Glx


Avatar


Posts: 174
Registered: 2-28-2017
Location: Massachusetts
Member Is Online

Mood: I need some more buggying!

[*] posted on 4-24-2018 at 04:42 PM


Thank you sir.



NAPKA US80

Kites:
Prism Snapshot 1.2 (This is what started the addiction)
Flexifoil Blurr 2.5, 3.5, 5.0
PKD Buster Soulfly 1.5, 3.3
PKD Buster Soulfly Pro 2.2, 4.4
PKD Century ii 3.5, 4.5, 6.0, 8.0, 10.0

Buggy:
Flexifoil Wide Axel
MG Supra
View user's profile View All Posts By User
RonH


Avatar


Posts: 477
Registered: 1-26-2008
Member Is Offline

Mood: Missing Sunset Beach

[*] posted on 4-28-2018 at 08:43 AM


The other part of the equation is kite selection...

A full on race kite sits further forward in the window and pulls the buggy differently than a intermediate kite that sits back in the window. For those with different kites this makes buggy setup harder to nail down...




PL reactor 2013 2.8

PL XR+
Home-brew buggy
View user's profile View All Posts By User
Glx


Avatar


Posts: 174
Registered: 2-28-2017
Location: Massachusetts
Member Is Online

Mood: I need some more buggying!

[*] posted on 4-28-2018 at 06:46 PM


Today got to take it out again after moving the wheel forward. It has a very noticeable increase in the turning radius but at the same time it feels even more solid at speed (yippee can't wait for a on shore high wind day so I can see exactly what I can do now).
As for sliding sideways, definitely now the whole buggy slides sideways as one, front and back come loose simultaneously.
Thank you guys for the advice.




NAPKA US80

Kites:
Prism Snapshot 1.2 (This is what started the addiction)
Flexifoil Blurr 2.5, 3.5, 5.0
PKD Buster Soulfly 1.5, 3.3
PKD Buster Soulfly Pro 2.2, 4.4
PKD Century ii 3.5, 4.5, 6.0, 8.0, 10.0

Buggy:
Flexifoil Wide Axel
MG Supra
View user's profile View All Posts By User
cheezycheese


Avatar


Posts: 3719
Registered: 8-18-2009
Location: Poughkeepsie, NY
Member Is Offline

Mood: Ready for action !!!

[*] posted on 4-29-2018 at 12:23 PM


So jealous of you guys at Nahant... :mad: that's okay... you do the math, so when I get a buggy I can copy... :thumbup:



US888
PL- Aero v1 11m / Phantom 6/9/12/15/18
Ozone Chrono v2 9m
Liquid Force Elite 6.5m
Flysurfer - Peak 3 12m / Outlaw 10m
Ted\'s Profoil-1m/3.5m
PKD - Century 2.5m, Soulfly 3.5m
Pansh- BlazeII 7m (tuned by Blake)
Custom NABX Rev
GT Rapide V/VTT-XR+ Special
View user's profile View All Posts By User
