Author: Subject: Show your Buggy rack ....
Kober


Avatar


Posts: 1917
Registered: 12-10-2010
Location: New Jersey
Member Is Offline

Mood: More kiting !!!

[*] posted on 2-7-2018 at 05:09 PM
Show your Buggy rack ....



Looking and Gix post got me thinking about how hard it was to get my buggy rack made.
So in this post I will share my creation and encourage all of you to do same .
I bet that will help a lot for new buggy owners looking for transportation solutions ....

So here it goes

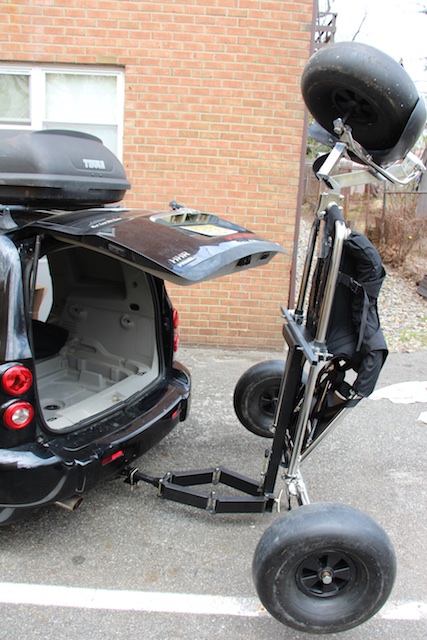

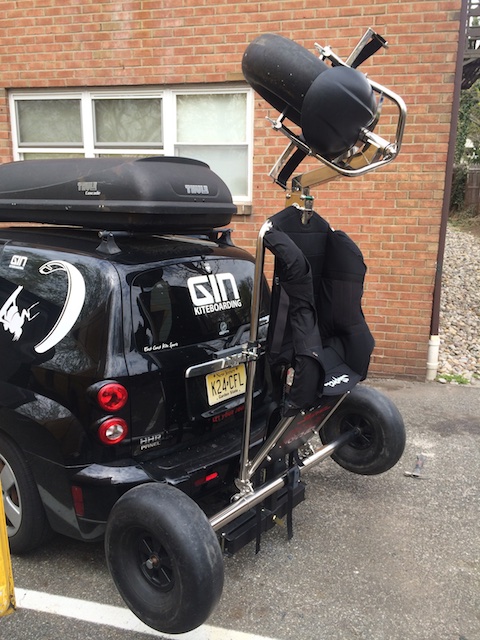

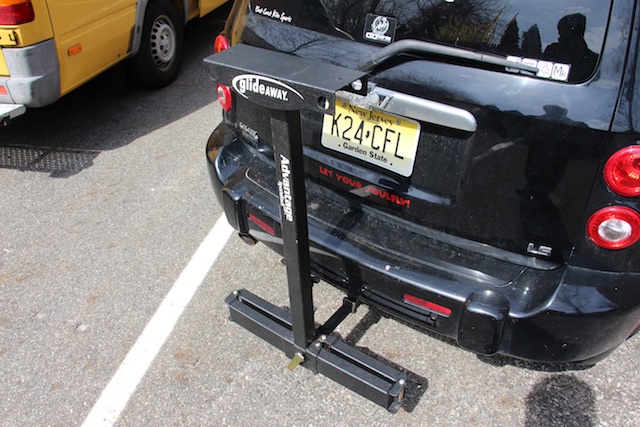

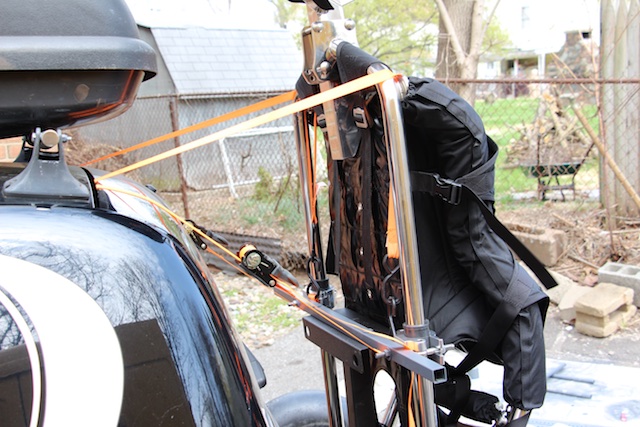

I transported my MG buggy on modified hitch mounted 4 bike rack that is rated at 140 lbs of load . It worked well for many years and it was also awesome that it glided away so I could use my tailgate . For longer trips I probably would remove front fork .

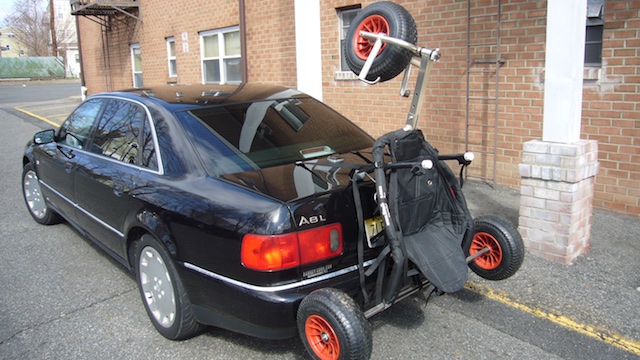

For smaller buggy that was super light I used simple 2 bike strap mount on my Audi .... no issues for many many miles ..

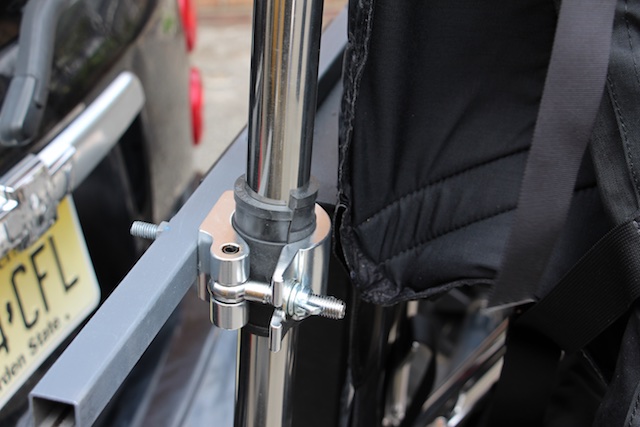

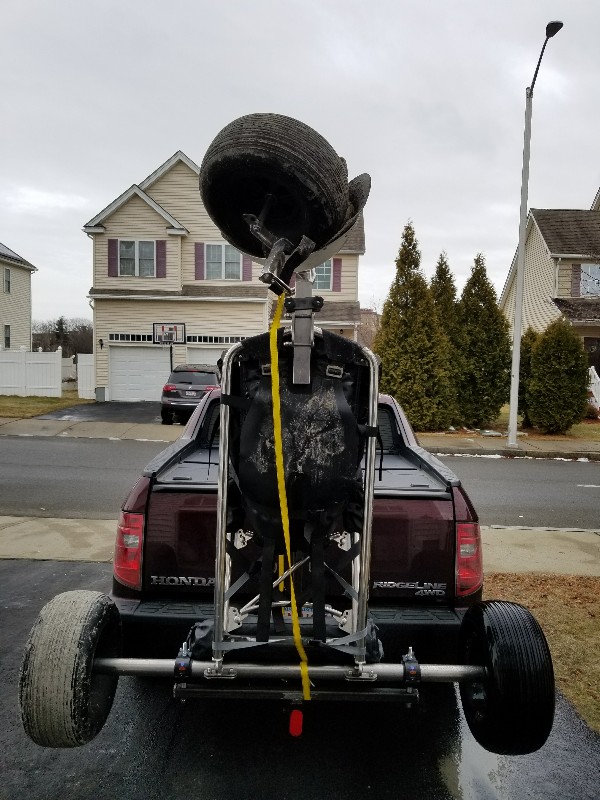

Now for a pickup truck I got DiamondBack cover that is rated up to 1400lbs and plan to mount special clamps to hold my buggy . I could not find any other cover with solid surface that could hold the weight . Its very expensive option but its totally worth it if you using it on newer trucks .

Any questions ? Shoot ...





IMG_1659.jpg - 146kB IMG_9781.jpg - 126kB IMG_9778.jpg - 64kB IMG_9777.jpg - 78kB IMG_9771.jpg - 130kB P1050557.jpg - 115kB IMG_6332 (1).jpg - 147kB

IMG_9784.jpg - 127kB




New Jersey Kite Addicts
NAPKA US-212
TEAM RIDER......... ............

Gin Egoist ..........9....13
Gin Cannibal ............11....13
Gin Zulu II / III .........5...7
Gin Sherpa .......10
Gin Yeti ..........4.5
Gin Tonkawa ..........3.1...4.1...5.4...6.8...8.7...11.5...15.4

2014 Aboards X-series.......134x41 with Ronix Park boots
2014 ABoards Glider ......154x48
2016 Axis Vanguard 139x43 with Ronix One boots
2016 Nobile Zen Hydrofoil with Infinity 5.1' splitboard

MG Supra ......... pulling KiteTrike
Flysurfer Speed4 Lotus 18m
Flysurfer Sonic-FR .... 9 ....11....18m
Flysurfer Sonic2 .....15m

....... My videos!
View user's profile View All Posts By User
Wind_dog


Avatar


Posts: 164
Registered: 3-15-2016
Location: Oregon
Member Is Offline

Mood: Itchin' for the beach

[*] posted on 2-7-2018 at 09:39 PM


Kuber - great info,

I'm thinking about options to carry more gear. Soon.
I've seen many approaches in Oregon.
Just some of those are:
a) Top of the pickup bed/over the tonneau (Sean, Colin ..)
b) Trailer hitch upright (Jon, John ...)
c) Inside the van (Jimmy, Eli, Chris ...)
d) Inside the pickup bed (Patrick, me ...)
e) In a trailer (Ryan, John, Mike ....)
f) Cartop (Eric with custom slider system!)
g) Top of the camper (Morrie)
h) In Mega Big RV storage bays , , , , ,

Wife, dog and I are headed south to IBX, Red Lake
and more next month and I'm looking at carry options.
We'll be pulling a small travel trailer with a Tacoma
and bringing bikes, buggies and blokarts.
Does any one have experience with racks
that fit between a tow vehicle and a trailer?

Pics always appreciated!!










Always on the steep part of the learning curve.
Flying a full quiver of single skins with an AQR
NAPKA US63
Also a Blokart when winds are really up.
View user's profile View All Posts By User
Blitzhound


Avatar


Posts: 425
Registered: 7-10-2013
Location: Reedsport, Oregon
Member Is Offline

Mood: Feeling a little PKDish.

[*] posted on 2-7-2018 at 10:57 PM


An upright hitch mount on the back of the trailer? I have been contemplating this option on my trailer. If your rear trailer bumper does not have a receiver. You can buy ones that attach via U-bolts. Just some thought I have had about how to do this myself.



NAPKA US541
New Tech Kratos
HQ Alpha 1.5m, HQ Beamer V 5.0m,
Pansh Legend 2.0m
PL Viper S 2.6m, 3.9m, 5.3m, 6.8m
PL Phantom II 15m, PL Vapor 7.8m
Best Bularoo 7m, Best Waroo 9m, 12m
PKD Century Soulfly II 2.2m, 2.8m, 3.5m, 4.5m, 6.0m, 8.0m, 10m, 12.5m
PKD Inferno 9m, 12m, 16.5m
Libre Hardcore, MG Croozer
View user's profile View All Posts By User
eric67m


Avatar


Posts: 284
Registered: 9-11-2015
Location: Monroe, Washington
Member Is Offline


[*] posted on 2-7-2018 at 11:02 PM

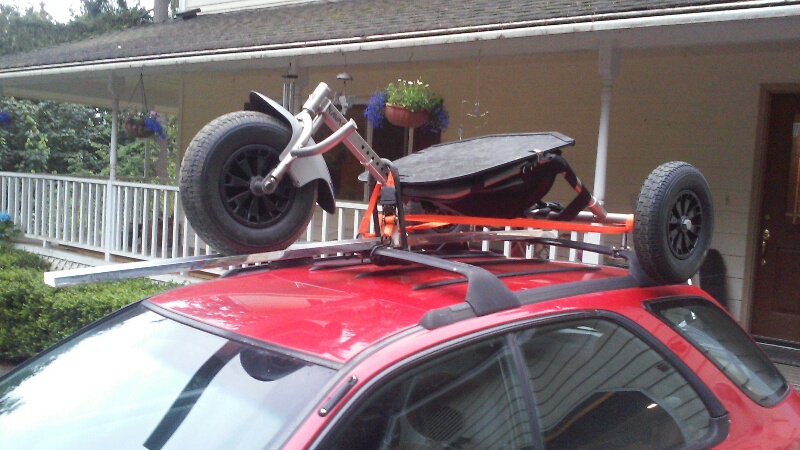

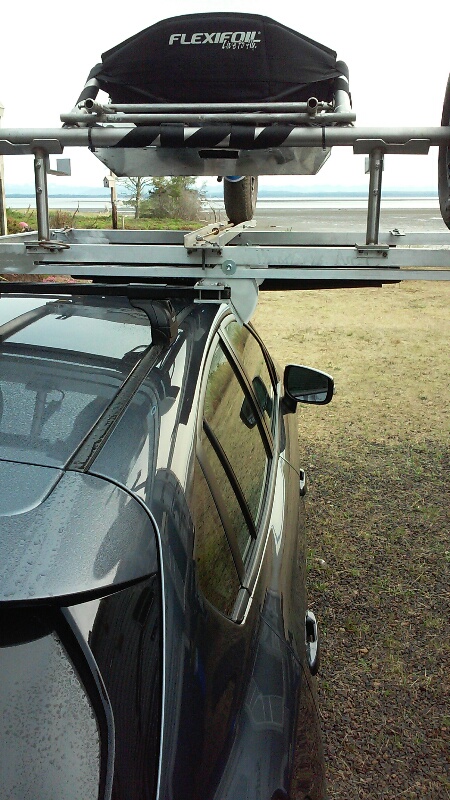

Here are the two racks that I had on my past two cars. The red Subaru had horizontal bars that I adapted to. When you loaded the buggy you had to lean way in to get the buggy onto the rear angle irons and the center channel. This car was thrashed and I did not notice that I was denting the roof.

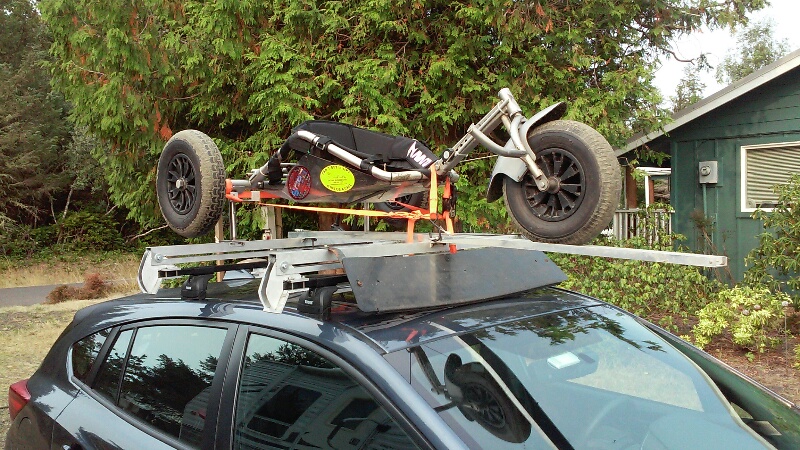

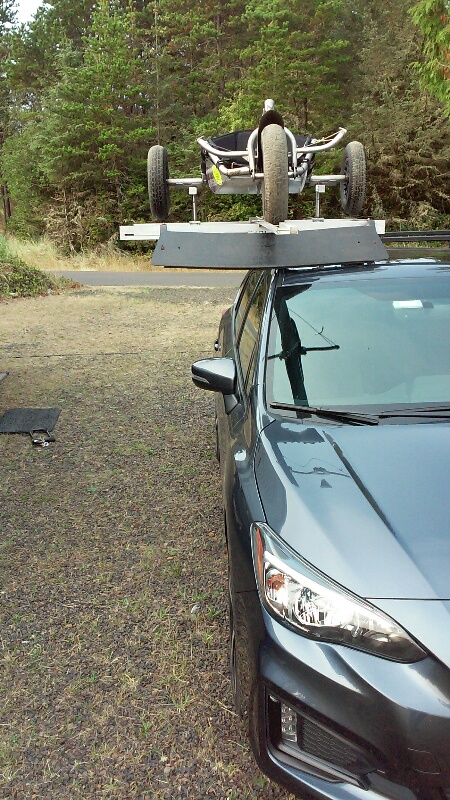

Then we got the newer grey Subaru. It had a simular rack adapted to a old square bar Thule system. Again, reaching in I put many small dents in the roof of my new car. Then I got the idea to make a sliding upper section. This allows me to not need too lean in so far. My only concern is that I would not want to load a full sized, big foot buggy up there. Lifting and positioning that much weight could be difficult.


20160625_061913-resized-800.jpg - 166kB 20170903_091949-resized-800.jpg - 247kB 20170903_092454-resized-800.jpg - 234kB 20170903_092514-resized-800.jpg - 187kB




Hq Alpha 1.5, 2.5, Pkd buster soulfly pro 3.3, Libre vampir 4M, Flexifoil blurr 5M, Radsails Aztec backpack with speakers (and a 5M kite), Pansh sprint 5M, Quad Trac 5M, Quad Trac 7M, Flysurfer peak 3 6M, peak 2 12M

Freilein/OSk-usa(rev) indoor quad kite

Flexifoil Navaro buggy
Ptw Playa buggy
View user's profile View All Posts By User
Randy


Avatar


Posts: 1027
Registered: 5-20-2014
Member Is Offline


[*] posted on 2-8-2018 at 11:43 AM


Here's mine. BTW -@Ed Cline - you can sort see my tires you were asking about....

photo(51).JPG - 125kB




NPW Test Pilot -US99
View user's profile View All Posts By User
Glx


Avatar


Posts: 145
Registered: 2-28-2017
Location: Massachusetts
Member Is Offline

Mood: I need some more buggying!

[*] posted on 2-10-2018 at 07:12 PM

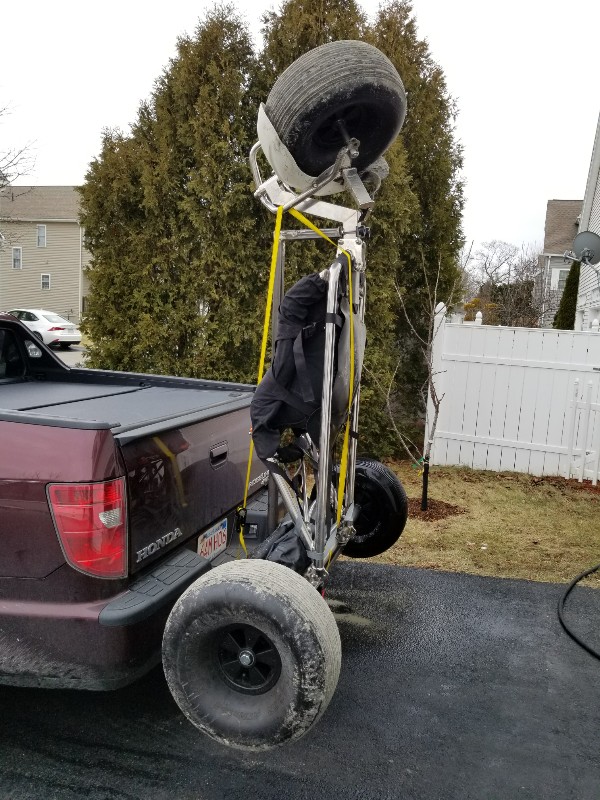

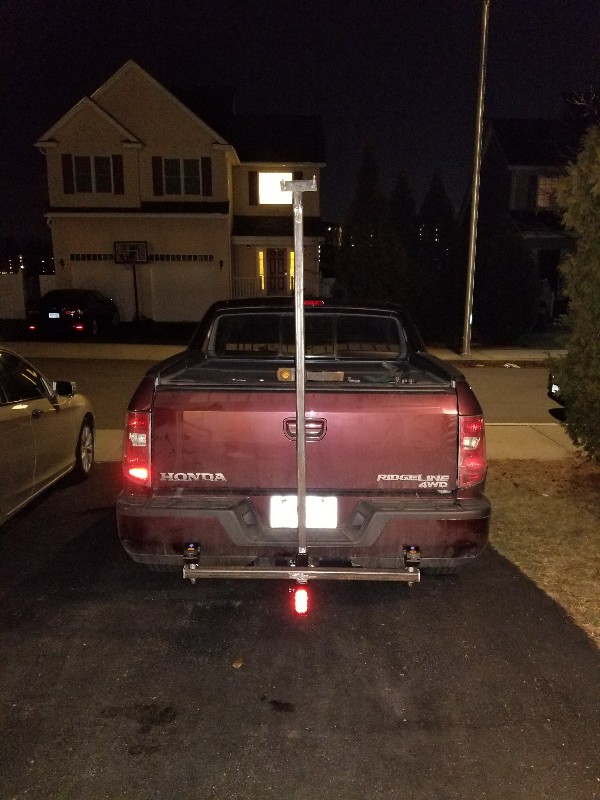

This rack is a copy of Van's buggy rack. I find it very easy to use whether it is being used with the flexi or the mg supra.



20180206_192913-600x800.jpg - 113kB 20180210_152239-600x800.jpg - 132kB 20180210_152254-600x800.jpg - 165kB




NAPKA US80

Kites:
Prism Snapshot 1.2 (This is what started the addiction)
Flexifoil Blurr 2.5, 3.5, 5.0
PKD Buster Soulfly 1.5, 3.3
PKD Buster Soulfly Pro 2.2, 4.4
PKD Century ii 3.5, 6.0, 8.0, 10.0

Buggy:
Flexifoil Wide Axel
MG Supra
View user's profile View All Posts By User
khaakon


Avatar


Posts: 81
Registered: 3-4-2015
Location: Oslo, Norway
Member Is Offline

Mood: In one of his moods, again..

[*] posted on 2-11-2018 at 01:31 PM


As seen on Roemoe beach in Denmark;


Ze Germans are ingenius, as we know already...;)




# Born-Kite LongStar 2 /3.5m # Flysurfer Peak 2 /6m + Peak 3 /12m
# Flysurfer Speed 5 /9m # 3, 6 & 12m line ext. # Ozone Ignition /2.5m trainerkite
# Libre V-Max full race Buggy on Midi XL's # MBS Comp 95 ATB # Elan Skis
# Underwave seat harness w/Dynabar, 2 rings sliding on rope# POC helmet & G-Form pads
View user's profile View All Posts By User
Chook


Avatar


Posts: 113
Registered: 10-25-2009
Location: Esperance Western Australia
Member Is Offline

Mood: I work at home from 8.00am to 12 knots

[*] posted on 2-12-2018 at 12:42 AM


Side note; Nice suspension setup on those bugs.

View user's profile View All Posts By User
Kober


Avatar


Posts: 1917
Registered: 12-10-2010
Location: New Jersey
Member Is Offline

Mood: More kiting !!!

[*] posted on 2-13-2018 at 02:30 PM


No more racks ?? Come on ..... do it for newbies



New Jersey Kite Addicts
NAPKA US-212
TEAM RIDER......... ............

Gin Egoist ..........9....13
Gin Cannibal ............11....13
Gin Zulu II / III .........5...7
Gin Sherpa .......10
Gin Yeti ..........4.5
Gin Tonkawa ..........3.1...4.1...5.4...6.8...8.7...11.5...15.4

2014 Aboards X-series.......134x41 with Ronix Park boots
2014 ABoards Glider ......154x48
2016 Axis Vanguard 139x43 with Ronix One boots
2016 Nobile Zen Hydrofoil with Infinity 5.1' splitboard

MG Supra ......... pulling KiteTrike
Flysurfer Speed4 Lotus 18m
Flysurfer Sonic-FR .... 9 ....11....18m
Flysurfer Sonic2 .....15m

....... My videos!
View user's profile View All Posts By User
eric67m


Avatar


Posts: 284
Registered: 9-11-2015
Location: Monroe, Washington
Member Is Offline


[*] posted on 2-13-2018 at 04:17 PM


I'm working on a new rear rack but only have Solidworks drawings at this time.





Hq Alpha 1.5, 2.5, Pkd buster soulfly pro 3.3, Libre vampir 4M, Flexifoil blurr 5M, Radsails Aztec backpack with speakers (and a 5M kite), Pansh sprint 5M, Quad Trac 5M, Quad Trac 7M, Flysurfer peak 3 6M, peak 2 12M

Freilein/OSk-usa(rev) indoor quad kite

Flexifoil Navaro buggy
Ptw Playa buggy
