Author: Subject: front mudguard?
m00ms




Posts: 182
Registered: 12-28-2015
Member Is Offline


[*] posted on 10-20-2017 at 11:45 AM
front mudguard?


hey all,

i am looking for a front mudguard for my chameleon iguana on big foots but cannot seam to find any over here in the uk.

i could fabricate something but would rather try and buy a proper mudguard for it.has anyone seen the buggy for sale on facebook with a yellow bucket cut to fit? does the job i guess but im picky and want it to look and fit correctly.

if anyone could advise where i could get that it would be much appreciated.

View user's profile View All Posts By User
JimSSI


Avatar


Posts: 122
Registered: 9-25-2013
Location: Saint Simons Island GA
Member Is Offline

Mood: https://countingdownto.com/countdown/jibe-countdown-clock

[*] posted on 10-21-2017 at 04:15 AM


Maybe this'll help?

I bought a red one of these

https://www.monsterscooterparts.com/front-fender-baja-mb200....

and used clamps and a heat gun to widen it by flattening the curve. Don't know if it will get wide enough for bigfoots (bigfeet?) And they warn it's more orange than yellow.

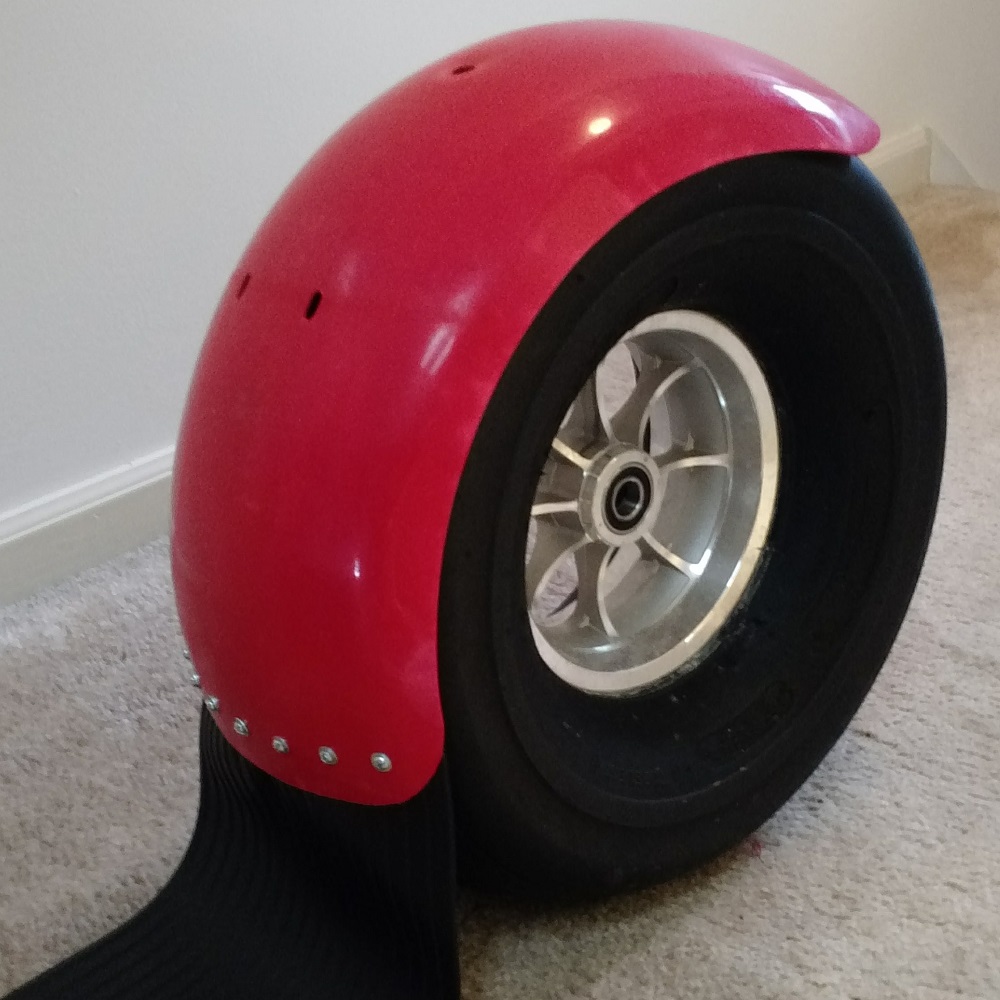

Black widow fender (3).jpg - 155kB

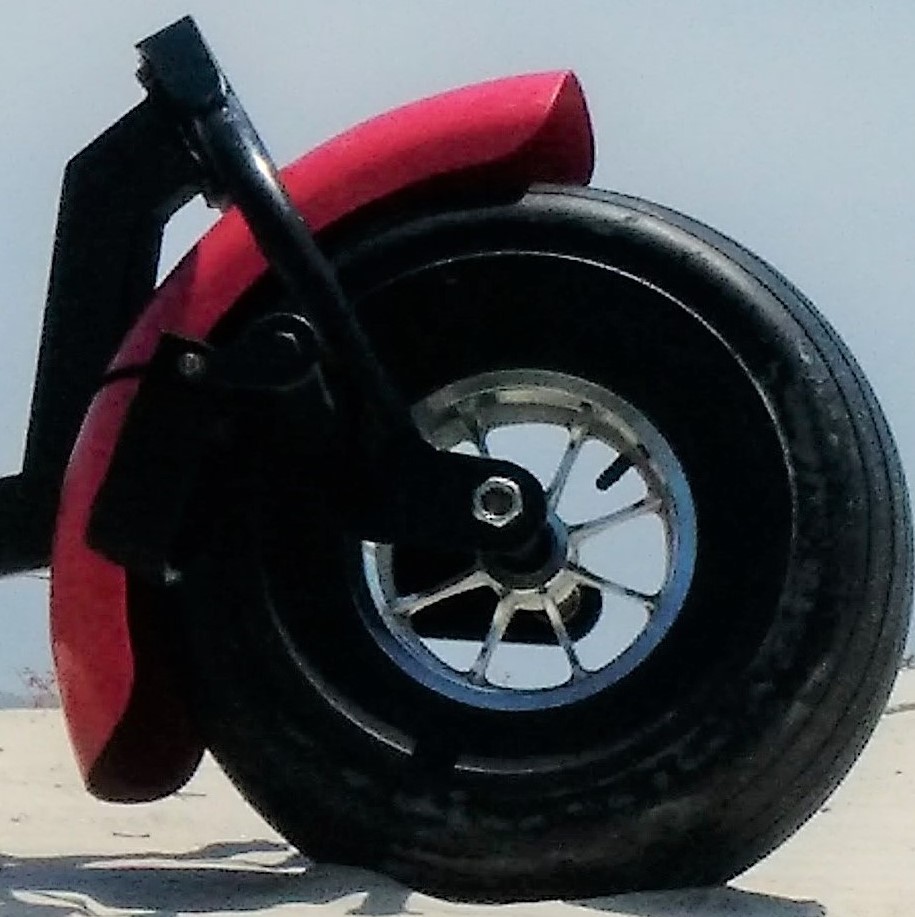

I later bolted on a mud flap (sandflap?) and sliced it vertically into fingered fringe. This image before final trim and slicing. Works great. No more sand in face!

fender with untrimmed flap.jpg - 231kB

Total spent $30 USD.




Some men call me.... "Jim."
PL Reactor 2.2, 3.5, 4.4, 5.5, 6.9, 8.6, 10.8
PL XR++, PL XR+ (anybuddy wanna buggy?)
VTT Black Widow Stinger
NAPKA-US49
View user's profile View All Posts By User
m00ms




Posts: 182
Registered: 12-28-2015
Member Is Offline


[*] posted on 10-21-2017 at 06:24 AM


hiya and thanks for the photo which looks great and is how i would like mine to look.i have just had brief look but cant find any in uk so i will have better look.

could i ask how wide it is so i can compare it to my forks thickness?
View user's profile View All Posts By User
eric67m


Avatar


Posts: 312
Registered: 9-11-2015
Location: Monroe, Washington
Member Is Offline


[*] posted on 10-21-2017 at 08:17 AM


I was wondering if something from a Honda ATC three wheeler would work...

https://www.amazon.com/dp/B000GTZFRI/ref=psdc_404665011_t1_B...

https://www.google.com/search?q=atc250+front+fender&clie...




Hq Alpha 1.5, 2.5, Pkd buster soulfly pro 3.3, Libre vampir 4M, Flexifoil blurr 5M, Radsails Aztec backpack with speakers (and a 5M kite), Pansh sprint 5M, Quad Trac 5M, Quad Trac 7M, Flysurfer peak 3 6M, peak 2 12M

Freilein/OSk-usa(rev) indoor quad kite

Flexifoil Navaro buggy
Ptw Playa buggy
View user's profile View All Posts By User
eric67m


Avatar


Posts: 312
Registered: 9-11-2015
Location: Monroe, Washington
Member Is Offline


[*] posted on 10-21-2017 at 09:46 AM


How wide are the monster scooter fenders before and after you modified them



Hq Alpha 1.5, 2.5, Pkd buster soulfly pro 3.3, Libre vampir 4M, Flexifoil blurr 5M, Radsails Aztec backpack with speakers (and a 5M kite), Pansh sprint 5M, Quad Trac 5M, Quad Trac 7M, Flysurfer peak 3 6M, peak 2 12M

Freilein/OSk-usa(rev) indoor quad kite

Flexifoil Navaro buggy
Ptw Playa buggy
View user's profile View All Posts By User
sand flea


Avatar


Posts: 577
Registered: 12-2-2010
Location: Portland Oregon
Member Is Offline

Mood: non significant wind chaser

[*] posted on 10-21-2017 at 11:23 AM


GT kite buggy
Has exactly what you want
View user's profile View All Posts By User
m00ms




Posts: 182
Registered: 12-28-2015
Member Is Offline


[*] posted on 10-21-2017 at 12:00 PM


thanks for the suggestions although none are in uk so not sure if delivery would be a problem.

i had looked at honda atc but all mudguards i found are fibre glass which will last no time at all.

just looked around on GT race buggies site!......not a good site for someone with weak will power!
View user's profile View All Posts By User
JimSSI


Avatar


Posts: 122
Registered: 9-25-2013
Location: Saint Simons Island GA
Member Is Offline

Mood: https://countingdownto.com/countdown/jibe-countdown-clock

[*] posted on 10-22-2017 at 05:06 AM


Tire is 8" wide. Fender was maybe 7" when purchased, widened it out to 9" - it's maybe 8" now, need to reheat and re-widen.

This is Van's Stinger fork, has a wishbone shape, maybe 12" wide at widest. Fender isn't mounted to fork, though.

The headstock bolt was long enough that I was able to drill a hole in the fender and use an additional locking bolt to attach. As such, it doesn't confirm as closely to the tire as I'd like. However, I throw enough wet beach sand that too close to tire may be a bad idea.

I used some black nylon line and threaded it thru the existing bracket holes - tied off to the unused high-position footpeg mounting holes.

For the next version, I'll try to completely flatten it, so it gets as wide as possible. Currently, you see the edges of the tire when piloting.

Or step up from 18x10.50 - 8 turfglide tires go to trailer tires, and look at a trailer fender - like these.

https://www.etrailer.com/dept-pg-Trailer_Fenders-pt-8_Inch_W...

The plastic trailer fenders seem to all be asymmetrical to mount to trailer, but the extra plastic on the trailer-side looks easily trimmed.

I don't know what, other than buggies, use the bigfoot tire - but that's how I found this. "What else uses these size tires" - minibikes for me. It was $23, with $12 shipping.




Some men call me.... "Jim."
PL Reactor 2.2, 3.5, 4.4, 5.5, 6.9, 8.6, 10.8
PL XR++, PL XR+ (anybuddy wanna buggy?)
VTT Black Widow Stinger
NAPKA-US49
View user's profile View All Posts By User
aronma


Avatar


Posts: 277
Registered: 8-19-2008
Location: New Jersey
Member Is Offline


[*] posted on 10-22-2017 at 06:45 AM


Maybe Bid Kid could help. I recommend sending him a U2U. He made me a front mudguard for my Ivanpah. It took him 10 minutes to make from a sheet of pliable material. I've had it for a couple of years and it works great!



Beamer 3.6m
Flexifoil Rage 3.5m, 6m
Flysurfer Outlaw 6m, 8m, 12m
Ivanpah Buggy
AK103 mtb
Blokart Pro 3m, 5.5m
Blokart Comp 3m, 5.5m
NAPKA US05
View user's profile View All Posts By User
eric67m


Avatar


Posts: 312
Registered: 9-11-2015
Location: Monroe, Washington
Member Is Offline


[*] posted on 10-22-2017 at 07:00 AM

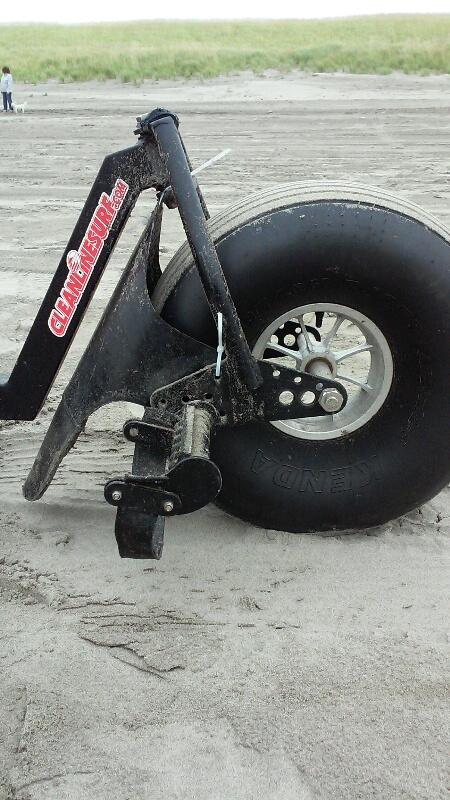

This is a picture of Eli's (from Sunset Beach, Oregon) Libre majestic. It has a flexible cut out fender that is attached at three points.


20170909_120947-resized-800.jpg - 186kB
View user's profile View All Posts By User
eric67m


Avatar


Posts: 312
Registered: 9-11-2015
Location: Monroe, Washington
Member Is Offline


[*] posted on 1-16-2018 at 07:38 PM


I just ordered this MB165 front fender to try out. Also note that thru mid day on Friday 1/19/2018 shipping is greatly reduced if you spend more than $50. Hopefully this fender will work out for me.



Hq Alpha 1.5, 2.5, Pkd buster soulfly pro 3.3, Libre vampir 4M, Flexifoil blurr 5M, Radsails Aztec backpack with speakers (and a 5M kite), Pansh sprint 5M, Quad Trac 5M, Quad Trac 7M, Flysurfer peak 3 6M, peak 2 12M

Freilein/OSk-usa(rev) indoor quad kite

Flexifoil Navaro buggy
Ptw Playa buggy
View user's profile View All Posts By User
Blitzhound


Avatar


Posts: 437
Registered: 7-10-2013
Location: Reedsport, Oregon
Member Is Offline

Mood: Feeling a little PKDish.

[*] posted on 1-17-2018 at 03:44 AM


Quote: Originally posted by m00ms
thanks for the suggestions although none are in uk so not sure if delivery would be a problem.

i had looked at honda atc but all mudguards i found are fibre glass which will last no time at all.

just looked around on GT race buggies site!......not a good site for someone with weak will power!


I have to disagree. I have an MG Croozer with the original Fiberglass Mudguard its probable about 8 years old by now and is in fine shape. No issues. Still looks good save for some scratches.




NAPKA US541
New Tech Kratos
HQ Alpha 1.5m, HQ Beamer V 5.0m,
Pansh Legend 2.0m
PL Viper S 2.6m, 3.9m, 5.3m, 6.8m
PL Phantom II 15m, PL Vapor 7.8m
Best Bularoo 7m, Best Waroo 9m, 12m
PKD Century Soulfly II 2.2m, 2.8m, 3.5m, 4.5m, 6.0m, 8.0m, 10m, 12.5m
PKD Inferno 9m, 12m, 16.5m
Libre Hardcore, MG Croozer
View user's profile View All Posts By User
bigkid


Avatar


Posts: 4153
Registered: 4-12-2009
Location: Somewhere
Member Is Offline

Mood: :-)

[*] posted on 1-17-2018 at 07:49 AM


I would have asked the manufacturer to send me a mud guard for the buggy. If they cant do that, I would ask if they can tell me where to get one. Short of admitting they cant help they would at least tell me the size of the fork so I could create one of my own.



Appex buggy, Libre hardcore buggies.
Flexboardz. Blokarts.
PKD Century Soulflys. NPW's. Nasa Stars.
A few other less flown oddballs,
Line sets from 10" to 328" or 2m to 100m.
worlds only AQR that works.
North American distributor for PKD.
"Kite Bugging is not an addiction until you try to quit".
View user's profile View All Posts By User
