Author: Subject: outfitting kayak and HQ symphony 1.8 for upwind traction.
CHICKENKOOP
Junior Member
**


Avatar


Posts: 60
Registered: 1-12-2015
Location: southern Vermont
Member Is Offline

Mood: OBSESSED!

[*] posted on 2-7-2017 at 08:21 AM
outfitting kayak and HQ symphony 1.8 for upwind traction.

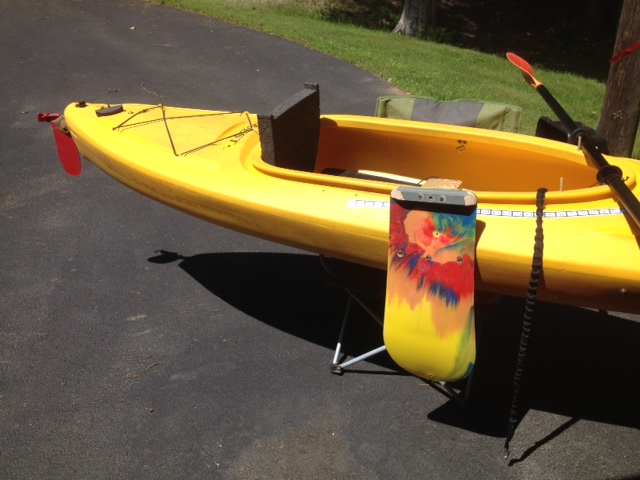

here's some photos of items I screwed together, a side board that swaps back and forth and slides fore and aft to adjust centering, so the kayak could be forced across the wind. and a tube on kite, so the kite wouldn't sea anchor every time I dropped it.
the side board is child's snow board
the tube is from the bladder inside collapsible" wonder hose"
I plug one end and zip ty it. other end gets a valve from bike tire(I cut it in half to lose weight)inflate then get correct length. loop rubber bands on bridle I use 5+ 2 from the trailing edge, thread through loop one at a time.
also I made drainage along trailing edge, also the shoulder of the end cell that's closed. I add a closed cell foam ball to the laundry loop.
the kite fly's better in some ways.
tis much less prone to collapse.
it can be handled and flipped because it has structure.
its way slower through the window. that's kinda good thing as that kite is hyper to begin with.

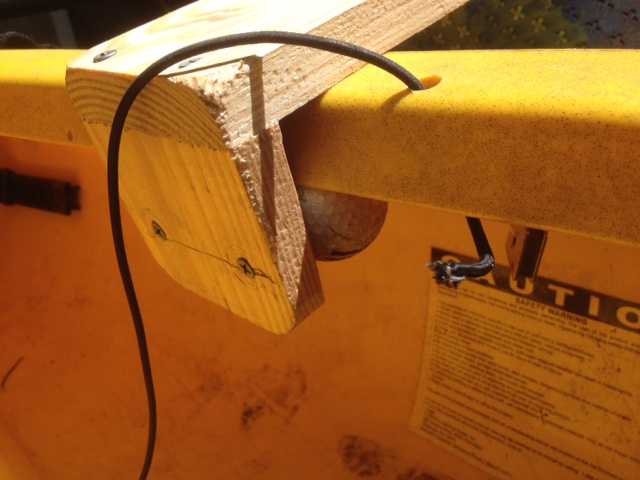

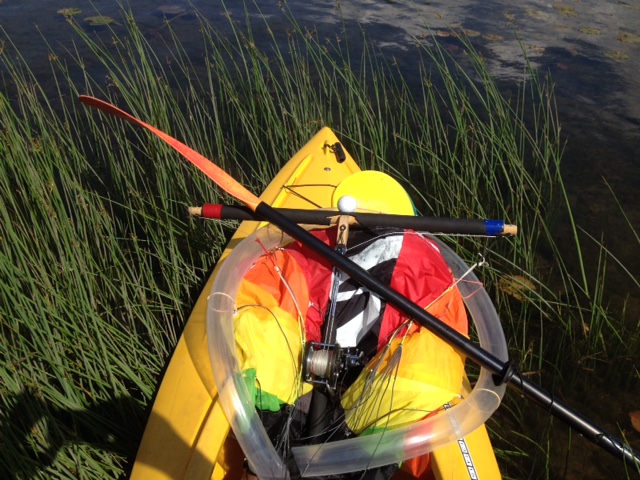

the control bar is a fishing rod butt with a medium penn saltwater reel I used the ceramic guides from the ruind rod to rote lines through the broom handle bar. its held on with a golfball with a friction fit. this rig is handy because I can land and launch the kite from the kayak. the lines are stock HQ.

tube kite.JPG - 134kBside board.JPG - 111kBside board hook.JPG - 100kBtaking a break.JPG - 168kB



HQ symphony 1.8 pro
HQ rush pro 300 SCHOOL
pansh adam 3.5
HQ apex IV 5.5
pansh genesis 8
pansh aroura 8 meter
flysurfer peak2 12meter
Pansh Aroura 2 15m
View user's profile
Randy
Posting Freak
*****


Avatar


Posts: 1892
Registered: 20-5-2014
Member Is Offline


[*] posted on 2-7-2017 at 11:52 AM


Pretty interesting. I like the fishing pole idea - very clever. Same for the floating kite. Do you get across the wind or upwind with it?


I see you have a Pansh Adam. Have you tried that with this boat?




NPW Test Pilot -US99
View user's profile
skimtwashington
Posting Freak
*****




Posts: 1758
Registered: 22-3-2011
Member Is Offline


[*] posted on 2-7-2017 at 03:15 PM


Good efforts and idea for water re-launchable augmentation.

Waiting for video of it ...:D


Keep it up....!

View user's profile
